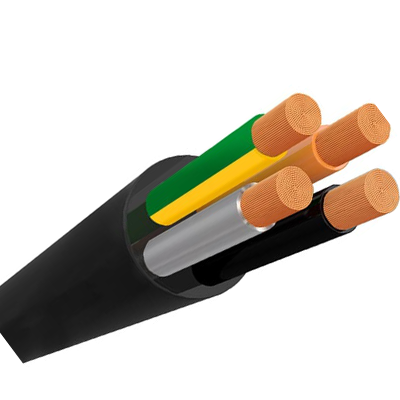

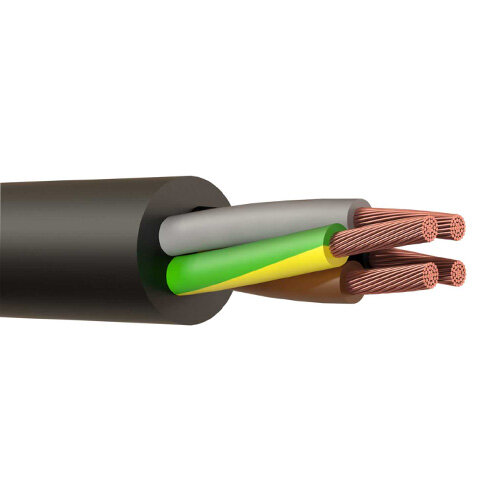

These cables are designed to provide high flexibility and have the capacity to withstand weather, oil/grease, mechanical and thermal stresses. Applications include handling equipment, mobile power supplies, worksites, stage and audio visual equipment. Also for use in drainage and water treatment, cold environments and severe industrial environments.
The 450/750 V copper conductor EPR insulated rubber cable used for household electrical appliances, electrical tools, and various mobile electrical equipments.
Conductor : Flexible Bare annealed copper wire or Tinned Copper wire
Insulation: Nitrile-Butadiene-PVC or Rubber Material or EPR
Sheath: Nitrile-Butadiene-PVC or Rubber Material or CSP
Choice of Black, Orange, Red or Yellow Blue jacket, single & double insulated.
SQ MM sizes (European style) :10 sq mm to 240 sq mm
AWG sizes (North American style) :6 Awg to 500 MCM
Wide temperature range: -55°C to 105°C
1. Rated power-frequency voltage U0/U: 450/750V, 300/500V and 300/300V.
2. Maximum permitted operating temperature of conductor is 60°C.
3. Permitted lowest working temperature is -35°C.
4. Rubber cable can be used at places contaminated by mineral oil and fuel oil.
5. D>25mm The minimum bending radius is over 6 times of cable diameter.
D≤25mmThe minimum bending radius is over 4 times of cable diameter.(D-Diameter of the cable)2.Characteristics
| Type | Rated voltage (V) | Cross-section (mm2) | No. of cores | Applications |
| YQ YQW | 300/300 | 0.3-0.75 | 2-5 | Used for light portable electric equipment and tools |
| YZ YZW | 300/500 | 1.5-6 | 2-5 | Used for various portable electric equipment and tools |
| YC YCW | 450/750 | 1.5-120 | 2-5 | Used for various portable electric equipment which can bear large mechanical force effect |
| YH YHF | - | 10-185 | 1 | For arc welding |
Model name of rubber cable
| HAR Code | IEC | Description | Voltage Design | Cores |
| H05RR-F | 60245IEC 53(YZ)/YZ | Ordinary rubber sheathed cord | 300/500V | 2~5 |
| H05RN-F | 60245 IEC 57(YZW)/YZW | Ordinary polychloroprene or other equivalent synthetic elastomer sheathed cord | 300/500V | 2~5 |
| H07RN-F | 60245 IEC 66(YCW)/YC | Heavy polychloroprene orother equivalent synthetic elastomer sheathed flexible cable | 450/750V | 1~5, 3+1/3+2/4+1 |
| H01N2-D | 60245 IEC 81(YH) | Rubber sheathed arc-welding electrode cable | 100/100V | 10-120 |
| 60245 IEC 82(YHF) | polychloroprene or other equivalent synthetic elastomer sheathed arc-welding electrode cable | 100/100V | 10-120 |
