Aerial Bundle Cable

Essential details
Place of Origin:Henan, China
Brand Name: RMJT
Insulation Material: XLPE /PE/PVC
Conductor Material: Aluminum,Aluminum alloy
Cable Type: Duplex, Triplex, Qudruple
Neutral conductor: AAC or 6201 Alloy or ACSR
Standard: ASTM, IEC, NFC
Certificate: ISO9001, ISO14001, CE

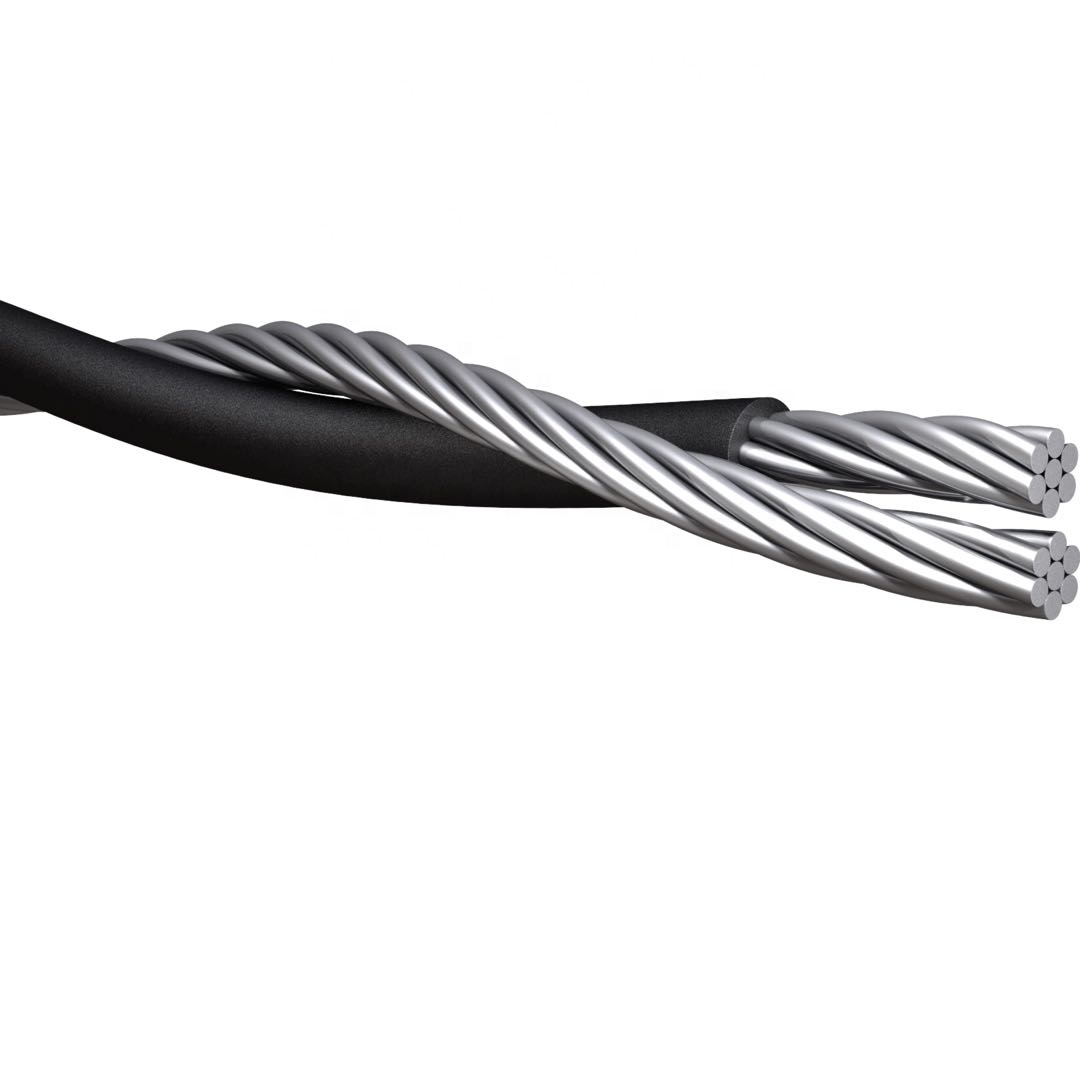

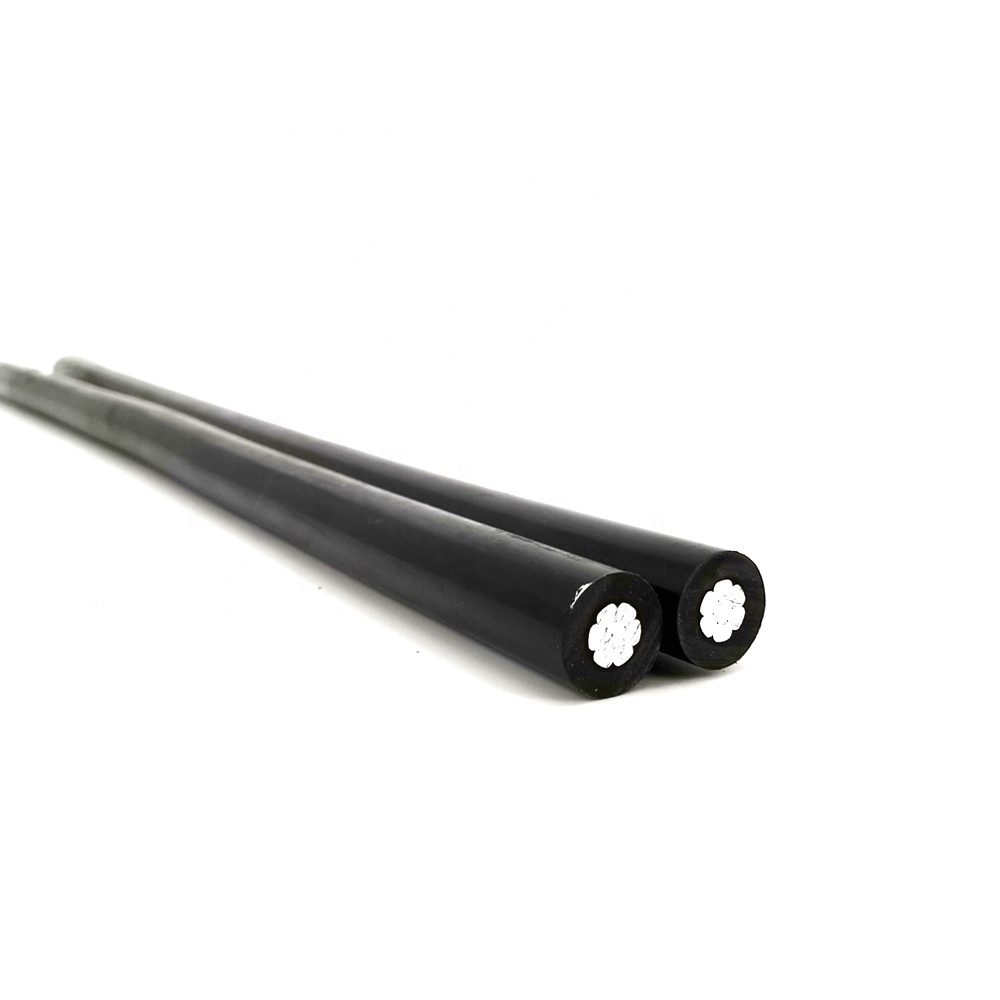

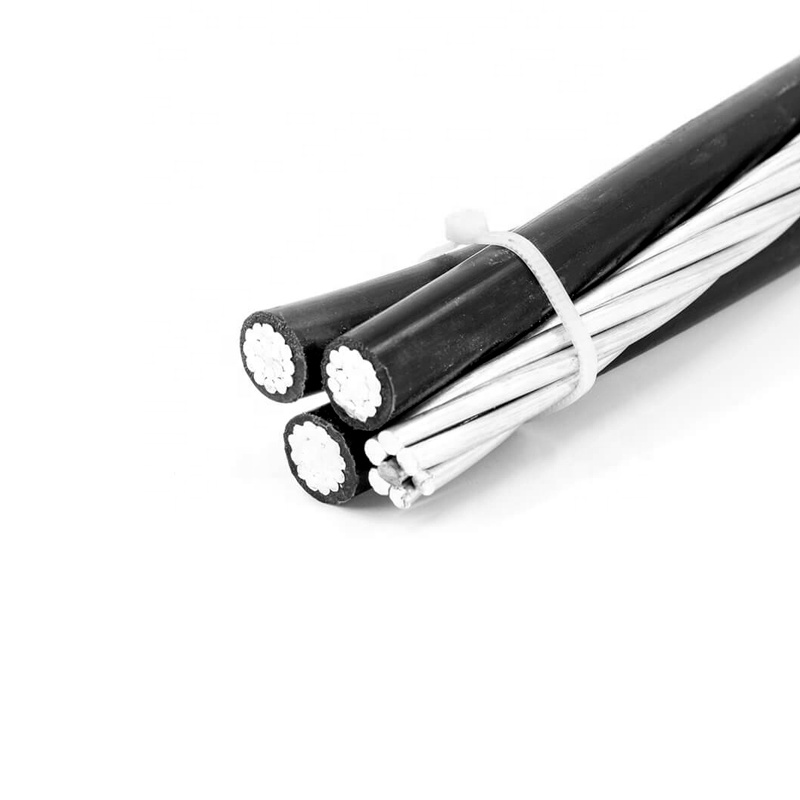

Aerial Bundle Cable - Service Drop - ABC Cable

Application

The cable as a new-type aerial cable is used for power transmission,.It is extensively used in rebuilding of urban and forest region electrified wire netting. It improves the safety and reliance of electrified wire netting.

Properties of XLPE Power Cable:
1)The highest allowed operating temperature of conductor for long-term working is 90 degrees;
2)The installation temperature of cable should be not less than -20;
3)When overall diameter of cable(D) is less than 25mm,permissive bending radius of cable should be not less than 4D,When overall diameter(D) of cable is equal to and above 25mm, permissive bending radius of cable should be not less than 6D.

Construction

Conductors are concentrically stranded ,compressed 1350-H19aluminum,insulated with either polyethylene(PE) or crosslinked polyethylene(XLPE).The neutral messengers are concentrically stranded AAC, ACSR, or 6201 aluminum alloy.ABC cable can be made 1 core, 2cores, 3cores, 4cores and so on

Standard:

ASTM B-230,B-231,B-232 and B-399
IEC S-76-474

Specification


Code name
Phase conductorBare neutral messengerWeight per
1000 ft(lbs)
Rating(Amps)
Size
AWG

Strand
Insulation
thickness
(mls)
Size
AWG

Strand
Breaking
strength
(lbs)

XLP

POLY

XLP

POLY
AAC NEUTRAL-MESSNGER
Clydesdale4Solid4547881208201.810080
Pinto47/w4547881223207.910080
Mustang27/w45271,350333312.6135105
Criollo1/019/w601/071,990529504.5180140
Percheron2/019/w602/072,510649620.5205160
Hanoverian3/019/w603/0193,310799765.6235185
Oldenburg4/019/w604/0194,020986946.7275210
Lippizaner336.419/w80336.4196,1461,5461,519.2370280
ACSR NEUTRAL-MESSNGER
Morochuca6Solid4566/11,190152147.47560
Chola67/w4566/11,190162151.77560
Morgan4Solid4546/11,86022622010080
Hackney47/w4546/11,860241226.110080
Palomino27/w4526/12,850362342.6135105
Costena1/019/w601/06/14,380575550.6180140
Grullo2/019/w602/06/15,310707678.7205160
Suffolk3/019/w603/06/16,620872838.9235185
Appaloosa4/019/w604/06/18,35010791039.2275210
Bronco336.419/w80336.418/18,58016131568.2370280
Gelding336.419/w804/06/18,35015481494.3370280
6201 ALLOY NEUTRAL-MESSENGER
Bay6Solid45671,110145140.07560
French Coach67/w45671,110155144.37560
German Coach4Solid45471,760214208.310080
Arabian47/w45471,760229214.410080
Belgian27/w45272,800344323.1135105
Shetland1/019/w601/074,460546521.1180140
Thoroughbred2/019/w602/075,390670641.5205160
Trotter3/019/w603/076,790825791.8235185
Walking4/019/w604/078,5601019979.7275210
