H07rn-F 3G*1.5mm2 Pure Copper Conductor Double Insulation Low Rubber Cable Price

Introduction

These cables are designed to provide high flexibility and have the capacity to withstand weather, oil/grease, mechanical and thermal stresses. Applications include handling equipment, mobile power supplies, worksites, stage and audio visual equipment. Also for use in drainage and water treatment, cold environments and severe industrial environments.

  • High strength
  • Large current carrying capacity
  • Good catenary property and wear-resistance
  • Anti-crush and corrosion-proof with simple structure

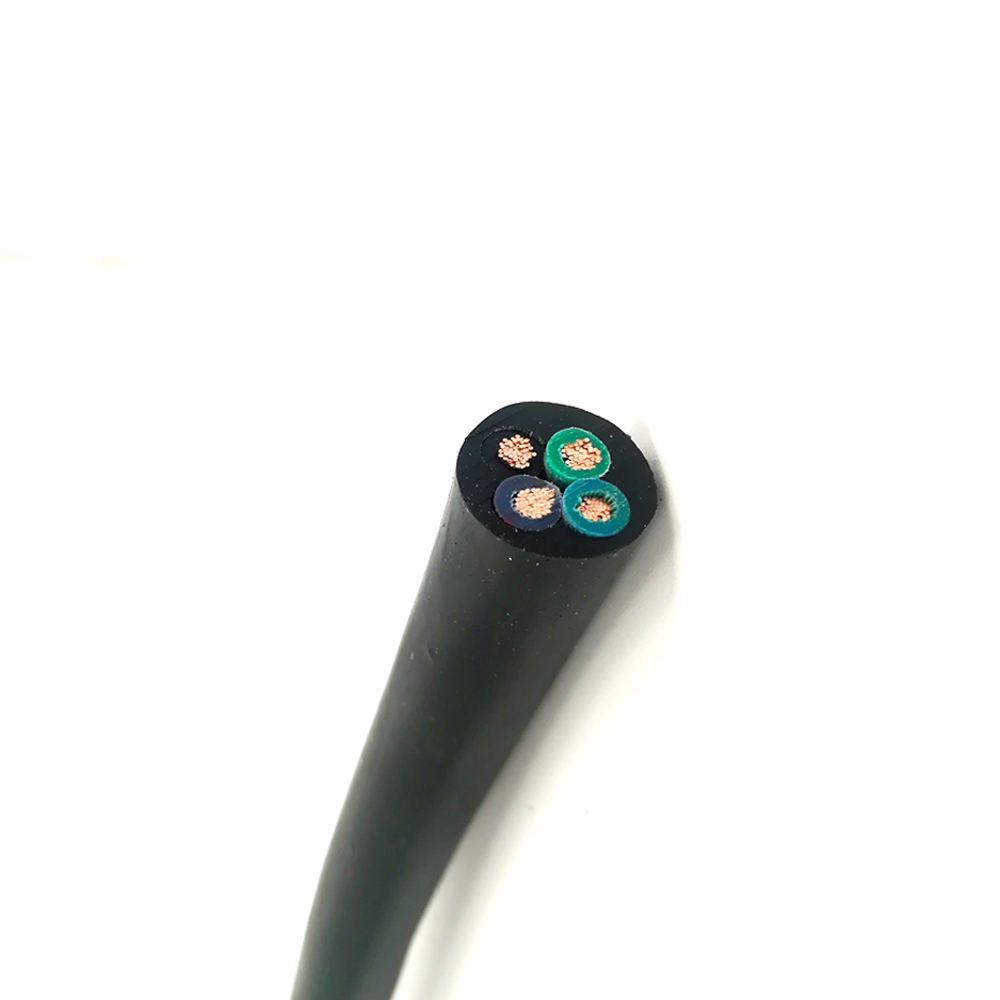

H07RN-F 3G*1.5mm2 pure copper conductor double insulation low rubber cable price

Rubber Cable Working Conditions:

1.Rated voltage :300/500(YZ type),450V(YC type)
2.The long-term working temperature of conductor should be no longer than 65*C
3.W type cables have weather-proof character and certain grease-proof character and are suitable for outdoor usage and the occasion with greasy dirt.
4. ZR type cables have fire-retardant character.

Characteristics

1. Rated power-frequency voltage U0/U: 450/750V, 300/500V and 300/300V.
2. Maximum permitted operating temperature of conductor is 60°C.
3. Permitted lowest working temperature is -35°C.
4. Rubber cable can be used at places contaminated by mineral oil and fuel oil.
5.  D>25mm
The minimum bending radius is over 6 times of cable diameter.
D≤25mm
The minimum bending radius is over 4 times of cable diameter.
   (D-Diameter of the cable)

Specification:

TypeName
YQNR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for light duty
YQWNR/SBR rubber insulated neoprene rubber sheathed flexible cables (wires) for light duty
YZNR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for middle duty
YZWNR/SBR rubber insulated neoprene rubber sheathed flexible cables (wires) for middle duty
YCNR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for heavy duty
YCWNR/SBR rubber insulated neoprene rubber sheathed flexible cables (wires) for heavy duty
YHNR/SBR rubber sheathed arc welding cable
THFNeoprene rubber sheathed arc welding cable

Note: suffix W means cable has the properties of weather and oil resistance, suitable for the places outdoors
and contaminated by the oil.

Rubber Cable Specification Range:


Type

Rated Voltage

Core Number
Nominal Cross-section Area
YQ,YQW300/3002.30.3~0.5
YZ,YZW300/5002.3.4.5.3+11.5~6

YC

450/750
1
2
3
4
5
1.5~240
1.5~95
1.5~150
1.5~25
