These cables are designed to provide high flexibility and have the capacity to withstand weather, oil/grease, mechanical and thermal stresses. Applications include handling equipment, mobile power supplies, worksites, stage and audio visual equipment. Also for use in drainage and water treatment, cold environments and severe industrial environments.

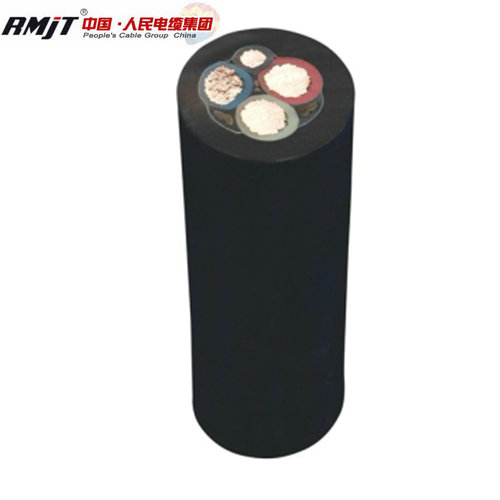

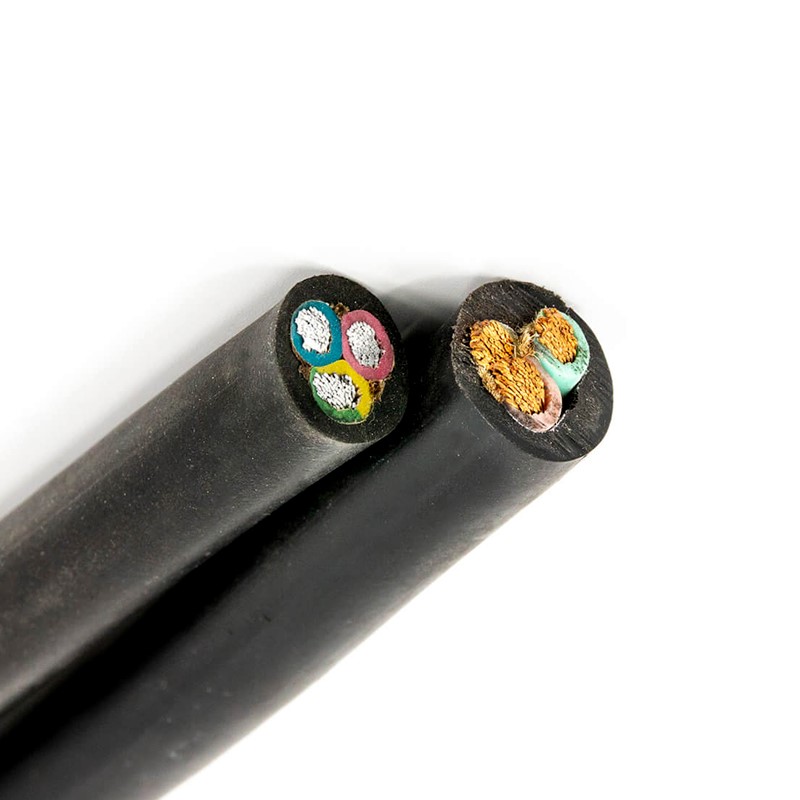

600/1000 PVC Insulated Sheathed, Stell Tape Armoured LV rubber cable
1.Rated voltage :300/500(YZ type),450V(YC type)
2.The long-term working temperature of conductor should be no longer than 65*C
3.W type cables have weather-proof character and certain grease-proof character and are suitable for outdoor usage and the occasion with greasy dirt.
4. ZR type cables have fire-retardant character.
1. Rated power-frequency voltage U0/U: 450/750V, 300/500V and 300/300V.
2. Maximum permitted operating temperature of conductor is 60°C.
3. Permitted lowest working temperature is -35°C.
4. Rubber cable can be used at places contaminated by mineral oil and fuel oil.
5. D>25mm
The minimum bending radius is over 6 times of cable diameter.
D≤25mm
The minimum bending radius is over 4 times of cable diameter.
(D-Diameter of the cable)
| Type | Name |
| YQ | NR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for light duty |
| YQW | NR/SBR rubber insulated neoprene rubber sheathed flexible cables (wires) for light duty |
| YZ | NR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for middle duty |
| YZW | NR/SBR rubber insulated neoprene rubber sheathed flexible cables (wires) for middle duty |
| YC | NR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for heavy duty |
| YCW | NR/SBR rubber insulated neoprene rubber sheathed flexible cables (wires) for heavy duty |
| YH | NR/SBR rubber sheathed arc welding cable |
| THF | Neoprene rubber sheathed arc welding cable |
Note: suffix W means cable has the properties of weather and oil resistance, suitable for the places outdoors and contaminated by the oil.
| Type | Rated Voltage | Core Number | Nominal Cross-section Area |
| YQ,YQW | 300/300 | 2.3 | 0.3~0.5 |
| YZ,YZW | 300/500 | 2.3.4.5.3+1 | 1.5~6 |
| YC | 450/750 | 1 2 3 4 5 | 1.5~240 1.5~95 1.5~150 1.5~25 |
