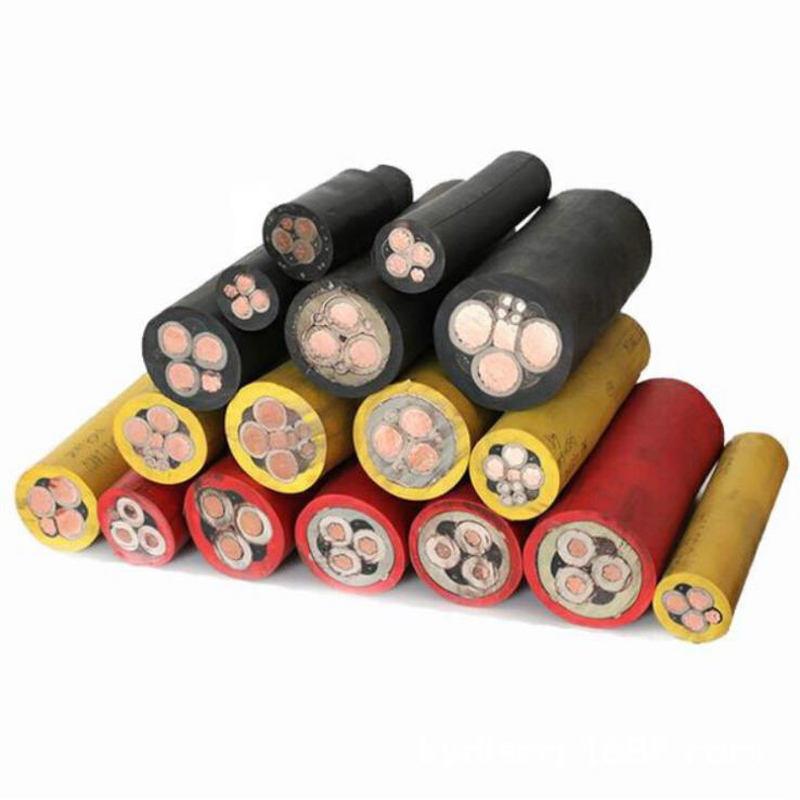

These cables are designed to provide high flexibility and have the capacity to withstand weather, oil/grease, mechanical and thermal stresses. Applications include handling equipment, mobile power supplies, worksites, stage and audio visual equipment. Also for use in drainage and water treatment, cold environments and severe industrial environments.

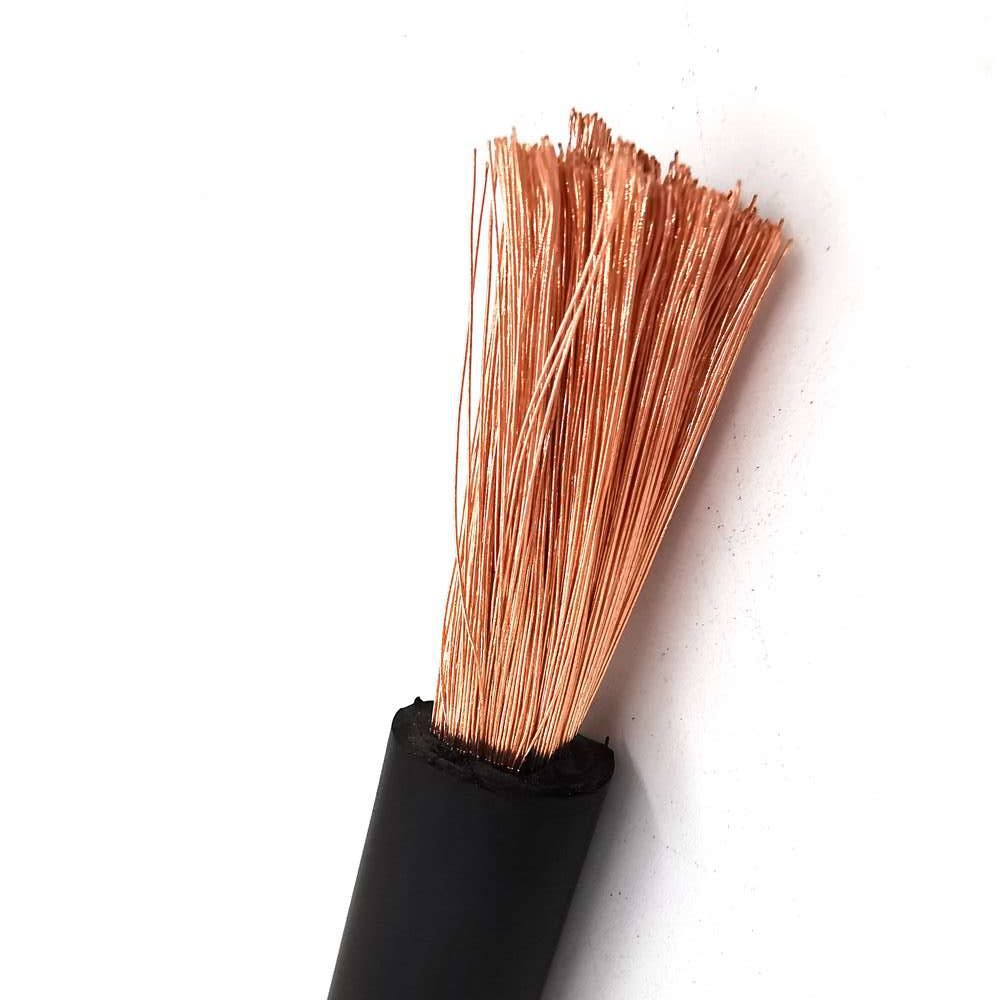

50mm Flexible Copper Core Rubber Cable for Electric Equipment

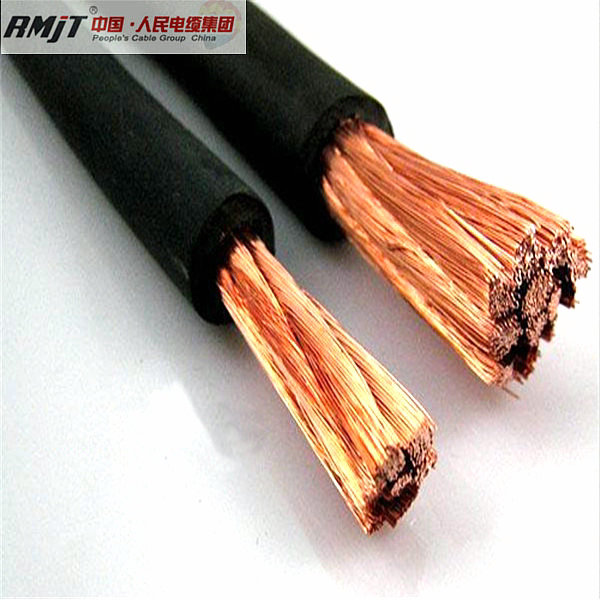

Suitable for all kinds of welding Machine Equipments. These cables are used for connecting the electrodes to the welding equipment. These cables are suitable for welding equipment in industry, in automated welding equipment, in tooling constructions, automobile and ship building as well as for hand-held electrodes in workshops and at building sites. These flexible and robust current-carrying cables are suitable for use at high mechanical loads in dry, moist and wet rooms as well for outdoor applications.
The welding cable can be produced according to the standard 245 IEC 81,ICEA S-75-381
| Conductor | Copper Conductor Structure | Thickness of Sheath | Average Outer Diameter (mm) | 20oC Conductor | Reference Weight | ||
| Nominal Section | Resistance | (kg/km) | |||||
| mm² | No./mm | mm | Min | Max | ≤(Ω/km) | YH | YHF |
| 10 | 322/0.20 | 1.8 | 7.5 | 9.7 | 1.91 | 146 | 153.51 |
| 16 | 513/0.20 | 2 | 9.2 | 11.5 | 1.16 | 218.9 | 230.44 |
| 25 | 798/0.20 | 2 | 10.5 | 13 | 0.758 | 316.6 | 331.15 |
| 35 | 1121/0.20 | 2 | 11.5 | 14.5 | 0.536 | 426 | 439.87 |
| 50 | 1596/0.20 | 2.2 | 13.5 | 17 | 0.379 | 592.47 | 610.55 |
| 70 | 2214/0.20 | 2.4 | 15 | 19.5 | 0.268 | 790 | 817.52 |
| 95 | 2997/0.20 | 2.6 | 17 | 22 | 0.198 | 1066.17 | 1102.97 |
| 120 | 1702/0.30 | 2.8 | 19 | 24 | 0.161 | 1348.25 | 1392.55 |
| 150 | 2135/0.30 | 3 | 21 | 27 | 0.129 | 1678.5 | 1698.72 |
| 185 | 1443/0.40 | 3.2 | 22 | 29 | 0.106 | 1983.8 | 2020.74 |

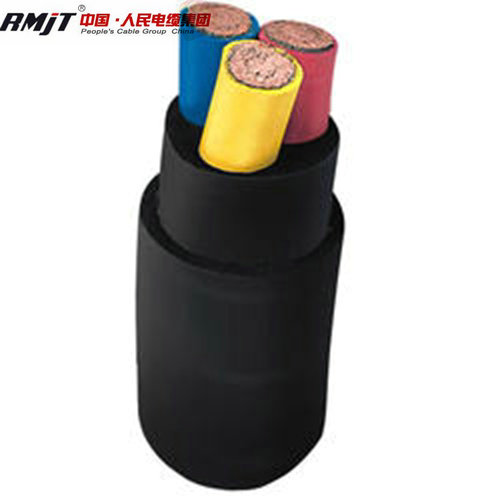

| Part no. | Line core number and conductor nominal section | Norminal thinkness of insulation(mm) | Norminal thinkness of sheath (mm) | Overall Diameter (mm) | At 20 DC Resistance of conductor (ohm/km) |
| 110230 | 1x1.5 | 0.8 | 1.4 | 6.60±0.1 | 13.3 |
| 110231 | 1x2.5 | 0.9 | 1.4 | 6.60±0.1 | 7.98 |
| 110234 | 2x1.0 | 0.8 | 1.3 | 8.60±0.2 | 19.5 |
| 110235 | 2x1.5 | 0.8 | 1.5 | 9.60±0.2 | 13.3 |
| 110236 | 2x2.5 | 0.9 | 1.7 | 11.40±0.3 | 7.98 |
| 110237 | 2x4.0 | 1 | 1.8 | 13.40±0.4 | 4.95 |
| 110238 | 2x6.0 | 1 | 2 | 15.6±0.4 | 3.3 |
| 110239 | 3x1.0 | 0.8 | 1.4 | 9.2±0.2 | 19.5 |
| 110240 | 3x1.5 | 0.8 | 1.6 | 10.3±0.3 | 13.3 |
| 110241 | 3x2.5 | 0.9 | 1.8 | 12.00±0.4 | 7.98 |
| 110242 | 3x4.0 | 1 | 1.9 | 14.40±0.4 | 4.95 |
| 110243 | 3x6.0 | 1 | 2.1 | 16.80±0.5 | 3.3 |
| 110244 | 4x1.0 | 0.8 | 1.5 | 10.30±0.3 | 19.5 |
| 110245 | 4x1.5 | 0.8 | 1.7 | 11.30±0.4 | 13.3 |
