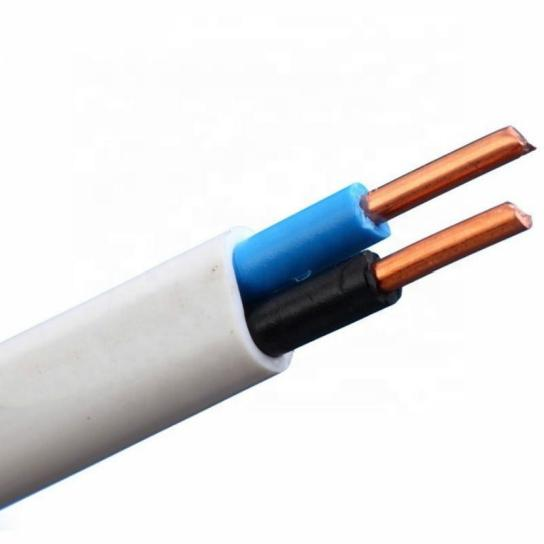

PVC insulated PVC sheathed round / flat wire (2271EC10) conductor complies with IEC60228/BS 6360, Class 1 or 2, stranded, annealed copper, the table shows the specifications of 1-5 core wires.
Rated voltage: 300/500V
Conductor: IEC60228/BS 6360 Class 1 or 2, stranded, annealed copper wire
Insulation: PVC Compound
Insulation Color: Red, Yellow, Blue, Black, Green, White, Purple, Gray, Orange, Pink
Operating temperature: 0 to 70℃
Sheath: PVC Compound
Min bending radius: 6 x overall insulted diameter
Standard: IEC 60227 / BS 6004
People Cable Group provides PVC insulated PVC sheathed round /flat wire according to IEC 60227 / BS
6004, these building wire have different rated voltage, they are 0.6/1kv rather than 450V/750V.
| Core No. x Cross Section mm2 | Number of Core | Min.Number of Wire | Overall diameter (mm) | Max. electrical resistance at 20℃ Ω/km | Min. insulation resistance at 70℃ MΩ·km | |
| Min. | Max. | |||||
| 2×1.5 | 2 | 1 | 7.6 | 10.0 | 12.1 | 0.011 |
| 2×2.5 | 2 | 1 | 8.6 | 11.5 | 7.41 | 0.010 |
| 2×4 | 2 | 1 | 9.6 | 12.5 | 4.61 | 0.0085 |
| 2×6 | 2 | 1 | 10.5 | 13.5 | 3.08 | 0.0070 |
| 2×10 | 2 | 7 | 13.5 | 17.5 | 1.83 | 0.0065 |
| 3×2.5 | 3 | 1 | 9.2 | 12.0 | 7.41 | 0.010 |
| 3x4 | 3 | 1 | 10.0 | 13.0 | 4.61 | 0.0085 |
| 3×6 | 3 | 1 | 11.5 | 14.5 | 3.08 | 0.0070 |
| 3×10 | 3 | 7 | 14.5 | 19.0 | 1.83 | 0.0065 |
| 4×1.5 | 4 | 1 | 8.6 | 11.5 | 12.1 | 0.011 |
| 4×2.5 | 4 | 1 | 10.0 | 13.0 | 7.41 | 0.010 |
| 4×4 | 4 | 1 | 11.5 | 14.5 | 4.61 | 0.0085 |
| 4×6 | 4 | 1 | 12.5 | 16.0 | 3.08 | 0.0070 |
| 4×10 | 4 | 7 | 16.0 | 20.5 | 1.83 | 0.0065 |
| 5×1.5 | 5 | 1 | 9.4 | 12.0 | 12.1 | 0.011 |
| 5×2.5 | 5 | 1 | 11.0 | 14.0 | 7.41 | 0.010 |
| 5×4 | 5 | 1 | 12.5 | 16.0 | 4.61 | 0.0085 |
| 5×6 | 5 | 1 | 13.5 | 17.5 | 3.08 | 0.0070 |
| 5×10 | 5 | 7 | 17.5 | 22.0 | 1.83 | 0.0065 |
| Core No× Cross Section mm² | Min. Wire Number of Conductor | Insulation Thickness mm | Sheath Thickness mm | Average Size of Cable mm | Max. Conductor Resistance of 20℃ Ohm/km | Min Insulation Resistance of 70℃ MOhm·km | ||
| Min. | Max. | Copper | Tinned-Cu | |||||
| 2×0.75 | 1 | 0.6 | 0.9 | 3.8×5.9 | 4.6×7.1 | 24.5 | 24.8 | 0.0120 |
| 2×1.0 | 1 | 0.6 | 0.9 | 3.9×6.1 | 4.8×7.4 | 18.1 | 18.2 | 0.0110 |
| 2×1.5 | 1 | 0.7 | 0.9 | 4.4×7.0 | 5.3×8.5 | 12.1 | 12.2 | 0.0110 |
| 2×2.5 | 1 | 0.8 | 1.0 | 5.1×8.4 | 6.2×10.1 | 7.41 | 7.56 | 0.0100 |
| 2×4 | 1 | 0.8 | 1.0 | 5.6×9.2 | 6.7×11.1 | 4.61 | 4.7 | 0.0085 |
| 2×4 | 7 | 0.8 | 1.0 | 5.7×9.5 | 6.9×11.5 | 4.61 | 4.7 | 0.0080 |
| 2×6 | 1 | 0.8 | 1.1 | 6.2×10.4 | 7.5×12.5 | 3.08 | 3.11 | 0.0070 |
| 2×6 | 7 | 0.8 | 1.1 | 6.4×10.8 | 7.8×13.0 | 3.08 | 3.11 | 0.0065 |
| 2×10 | 7 | 1.0 | 1.2 | 7.9×13.4 | 9.5×16.2 | 1.83 | 1.84 | 0.0065 |
| 3×0.75 | 1 | 0.6 | 0.9 | 3.8×7.9 | 4.6×9.6 | 24.5 | 24.8 | 0.0120 |
| 3×1.0 | 1 | 0.6 | 0.9 | 3.9×8.4 | 4.8×10.1 | 18.1 | 18.2 | 0.0110 |
| 3×1.5 | 1 | 0.7 | 0.9 | 4.4×9.6 | 5.3×11.7 | 12.1 | 12.2 | 0.0110 |
| 3×2.5 | 1 | 0.8 | 1.0 | 5.1×11.6 | 6.2×14.0 | 7.41 | 7.56 | 0.0100 |
| 3×4 | 1 | 0.8 | 1.0 | 5.8×13.1 | 7.0×15.8 | 4.61 | 4.7 | 0.0085 |
| 3×4 | 7 | 0.8 | 1.0 | 5.9×13.5 | 7.1×16.3 | 4.61 | 4.7 | 0.0080 |
| 3×6 | 1 | 0.8 | 1.1 | 6.2×14.5 | 7.5×17.5 | 3.08 | 3.11 | 0.0070 |
| 3×6 | 7 | 0.8 | 1.1 | 6.4×15.1 | 7.8×18.2 | 3.08 | 3.11 | 0.0065 |
| 3×10 | 7 | 1.0 | 1.2 | 7.9×19.0 | 9.5×23.0 | 1.83 | 1.84 | 0.0065 |
PVC insulated PVC sheathed round / flat wire (2271EC10) is mainly used for connection and protection of
6004, these building wire have different rated voltage, they are 0.6/1kv rather than 450V/750V.
Our professional team will reply you as soon as possible.
