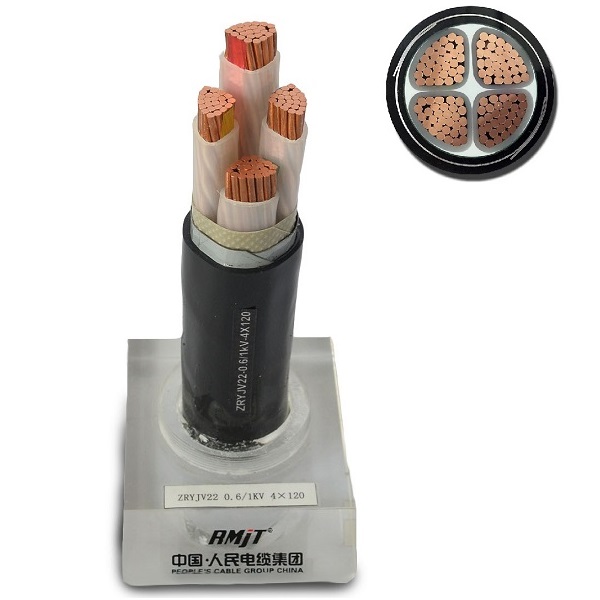

XLPE insulated power cables for rated voltages of 1 kV (Um = 1,2 kV) is used to transmit power on the power transmission and distribution line of A.C.50Hz, rated voltage 1kV or below. They are well adapted to underground use in industrial applications with an additional mechanical protection. These cables can be fixed on cable trays, within conduits or fixed to walls.
XLPE insulated power cables for rated voltages of 1 kV (Um = 1,2 kV) is used to transmit power on the power transmission and distribution line of A.C.50Hz, rated voltage 1kV or below. They are well adapted to underground use in industrial applications with an additional mechanical protection. These cables can be fixed on cable trays, within conduits or fixed to walls.
IEC60502-1 Power cables with extruded insulation and their accessories for rated voltages
from 1 kV (Um = 1,2 kV) up to 30 kV (Um = 36 kV)
Part 1: Cables for rated voltages of 1 kV (Um = 1,2 kV) and 3 kV (Um = 3,6 kV)
--Rated Voltage: 0.6/1kV
--The ambient temperature for cable installation :≥0 0C
--This maximum working temperature of the conductor is 90 0C;
--During having a short (lasting less than 5 seconds) the maximum temperature of the cable conductor shall not be above 250 0C;
--Bending radius allowance of the cable:
Single core cable: 20(D+d)±5%
Multi core cable: 15(D+d)±5%
D-Actual outer diameter of cable sample(mm);
d-Actual diameter of the conductor(mm).
Class 1 solid copper conductor
Class 2 stranded circular or circular compacted
XLPE (Cross-Linked Polyethylene)
PVC (Polyvinyl Chloride)

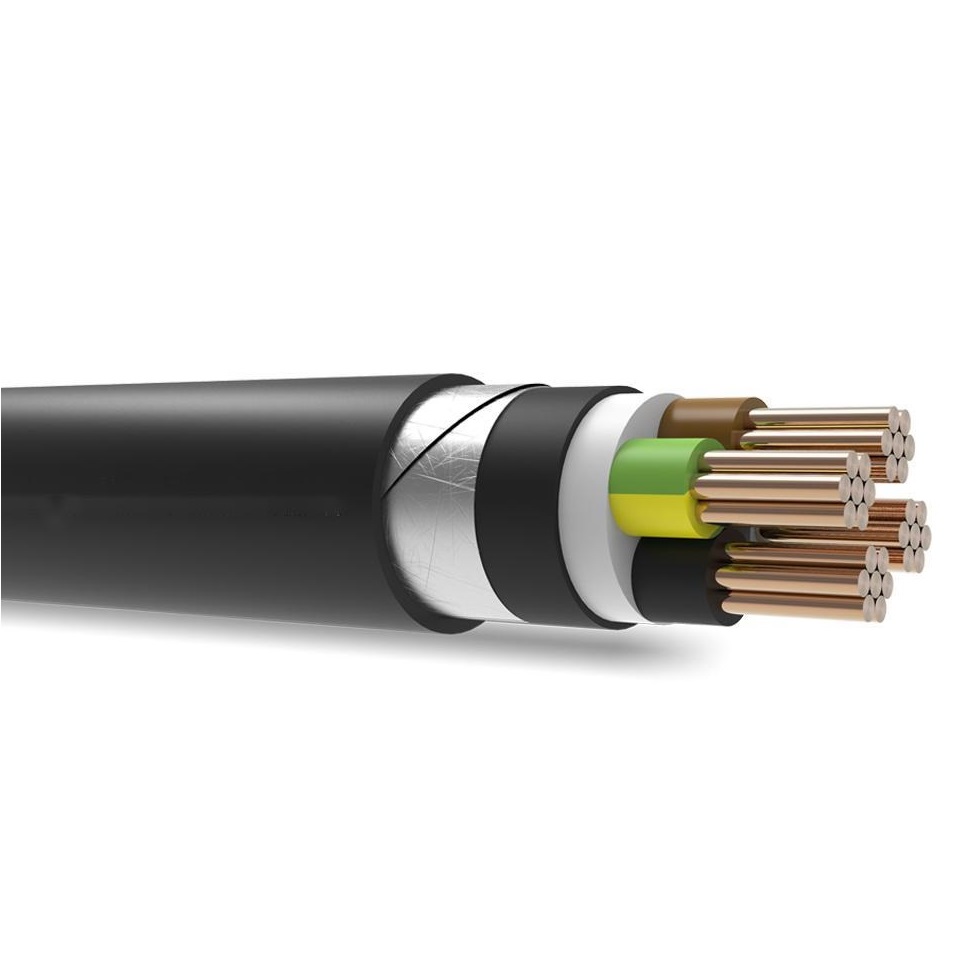

STA- Steel Tape Amoured
Non-magnetic amoured material used for single core cable.
PVC (Polyvinyl Chloride)
2 core: Blue Brown
3 core: Green/Yellow Blue Brown
4 core: Green/Yellow Brown Black Grey
5 core: Green/Yellow Blue Brown Black Grey
Or Customerized.
1)Cable conductor DC resistance: See the table 1-1
2)AC voltage test: See the table 1-2
3)Allowed continuous current capacity of unarmoured cable: See the table1-3
4)Allowed continuous current capacity of armoured cable: See the table 1-4
Table 1-1 Max. DC resistance of cable conductor at 200C
Rated cross area(mm2) | 0.5 | 0.75 | 1.0 | 1.5 | 2.5 | 4 | 6 | 10 | |
Cu (Ω/km) | Non tinned | 36.0 | 24.5 | 18.1 | 12.1 | 7.41 | 4.61 | 3.08 | 1.83 |
Tinned | 36.7 | 24.8 | 18.2 | 12.2 | 7.56 | 4.70 | 3.11 | 1.84 | |
Al (Ω/km) | / | / | / | 18.1 | 12.1 | 7.41 | 4.61 | 3.08 | |
Rated cross area(mm2) | 16 | 25 | 35 | 50 | 70 | 95 | 120 | 150 | |
Cu (Ω/km) | Non tinned | 1.15 | 0.727 | 0.524 | 0.387 | 0.268 | 0.193 | 0.153 | 0.124 |
Tinned | 1.16 | 0.734 | 0.529 | 0.391 | 0.270 | 0.195 | 0.154 | 0.126 | |
Al (Ω/km) | 1.91 | 1.20 | 0.868 | 0.641 | 0.443 | 0.320 | 0.253 | 0.206 | |
Rated cross area(mm2) | 185 | 240 | 300 | 400 | 500 | 630 | 800 | 1000 | |
Cu (Ω/km) | Non tinned | 0.0991 | 0.0754 | 0.0601 | 0.0470 | 0.0366 | 0.0283 | 0.0221 | 0.0176 |
Tinned | 0.100 | 0.0762 | 0.0607 | 0.0475 | 0.0369 | 0.0286 | 0.0224 | 0.0177 | |
Al ( Ω/km) | 0.164 | 0.125 | 0.100 | 0.0778 | 0.0605 | 0.0469 | 0.0367 | 0.0291 |
Table 1-2 AC voltage test of cable
Rated VoltagekV | 0.6/1 |
Test VoltagekV | 3.5 |
Test Time min | 5 |
Table 1-3 Allowed continuous current capacity of unarmoured cable
Conditions:Environment temperature:400C;
Soil temperature:250C;
Soil thermal receptivity: 2000C·cm/W
ConductorAreamm2 | Allowed continuous current capacity in air(A) | Allowed continuous current capacity in soil(A) | ||||||
Copper cable | Aluminum cable | Copper cable | Aluminum cable | |||||
Singlecore | Multi core | Singlecore | Multi core | Singlecore | Multi core | Singlecore | Multi core | |
2.5 | 34 | 32 | 27 | 25 | 36 | 32 | 27 | 25 |
4 | 44 | 41 | 35 | 32 | 47 | 41 | 35 | 32 |
6 | 56 | 52 | 45 | 42 | 59 | 52 | 46 | 42 |
10 | 77 | 70 | 60 | 53 | 78 | 69 | 59 | 53 |
16 | 100 | 91 | 78 | 70 | 102 | 90 | 77 | 71 |
25 | 132 | 118 | 102 | 91 | 130 | 117 | 104 | 91 |
35 | 164 | 150 | 127 | 114 | 169 | 143 | 117 | 113 |
50 | 196 | 182 | 152 | 146 | 187 | 169 | 139 | 134 |
70 | 251 | 228 | 195 | 178 | 226 | 208 | 174 | 165 |
95 | 305 | 273 | 236 | 214 | 269 | 247 | 208 | 195 |
120 | 351 | 314 | 272 | 246 | 300 | 282 | 239 | 221 |
150 | 401 | 360 | 311 | 278 | 339 | 321 | 269 | 247 |
185 | 461 | 410 | 359 | 319 | 382 | 356 | 300 | 278 |
240 | 546 | 483 | 424 | 378 | 435 | 408 | 348 | 321 |
300 | 611 | 552 | 474 | 419 | 495 | 469 | 391 | 365 |
400 | 716 | / | 546 | / | 574 | / | 456 | / |
Table 1-4 Allowed continuous current capacity of armoured cable
Conditions:Environment temperature:400C;
Soil temperature:250C;
Soil thermal receptivity: 2000C·cm/W
ConductorAreamm2 | Allowed continuous current capacity in air(A) | Allowed continuous current capacity in soil(A) | ||
Copper core cable | Aluminum core cable | Copper core cable | Aluminum core cable | |
Multi core | Multi core | Multi core | Multi core | |
4 | 41 | 32 | 41 | 32 |
6 | 52 | 42 | 52 | 42 |
10 | 70 | 53 | 69 | 53 |
16 | 91 | 70 | 90 | 71 |
25 | 118 | 91 | 117 | 91 |
35 | 150 | 114 | 143 | 113 |
50 | 182 | 146 | 169 | 134 |
70 | 228 | 178 | 208 | 165 |
95 | 273 | 214 | 247 | 195 |
120 | 314 | 246 | 282 | 221 |
150 | 360 | 278 | 321 | 247 |
185 | 410 | 319 | 356 | 278 |
240 | 483 | 378 | 408 | 321 |
300 | 552 | 419 | 469 | 365 |
