0.6/1kV Al/XLPE/STA/PVC Insulated Power Cable

Introduction

XLPE insulated power cables for rated voltages of 1 kV (Um = 1,2 kV) is used to transmit power on the power transmission and distribution line of A.C.50Hz, rated voltage 1kV or below. They are well adapted to underground use in industrial applications with an additional mechanical protection. These cables can be fixed on cable trays, within conduits or fixed to walls.

Executive standard:

IEC60502-1 Power cables with extruded insulation and their accessories for rated voltages
from 1 kV (Um = 1,2 kV) up to 30 kV (Um = 36 kV)
Part 1: Cables for rated voltages of 1 kV (Um = 1,2 kV) and 3 kV (Um = 3,6 kV)

Instruction of Application

--Rated Voltage: 0.6/1kV
--The ambient temperature for cable installation :≥0 0C
--This maximum working temperature of the conductor is 90 0C;
--During having a short (lasting less than 5 seconds) the maximum temperature of the cable conductor shall not be above 250 0C;
--Bending radius allowance of the cable:
Single core cable: 20(D+d)±5%
Multi core cable: 15(D+d)±5%
D-Actual outer diameter of cable sample(mm);
d-Actual diameter of the conductor(mm).

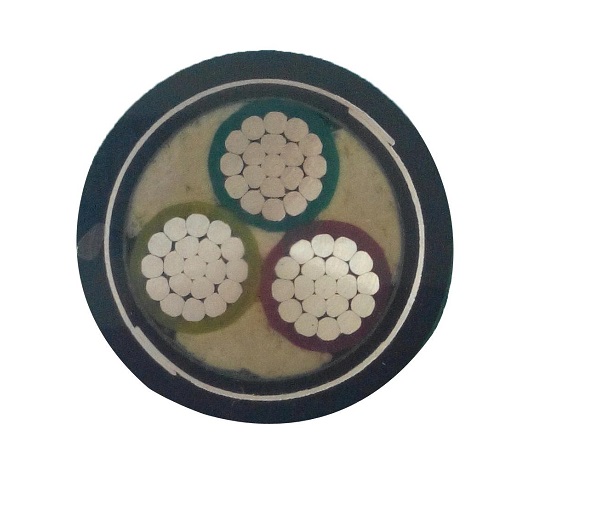

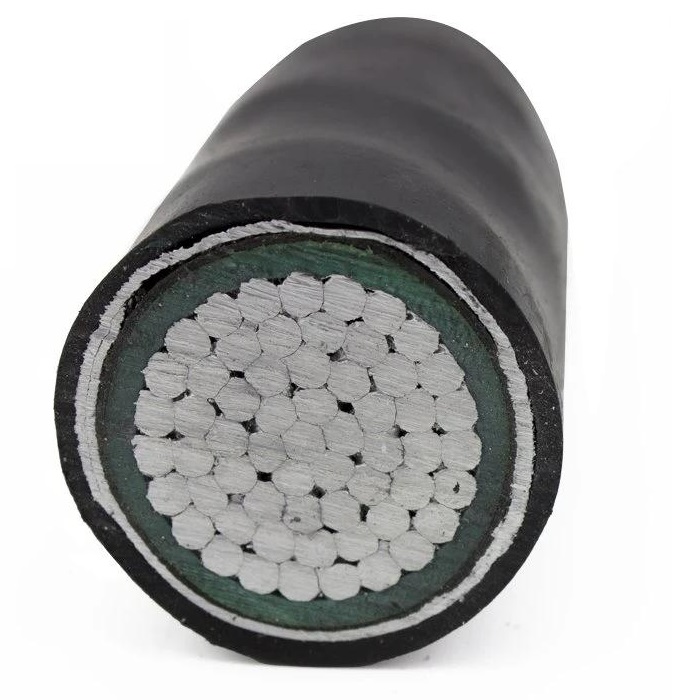

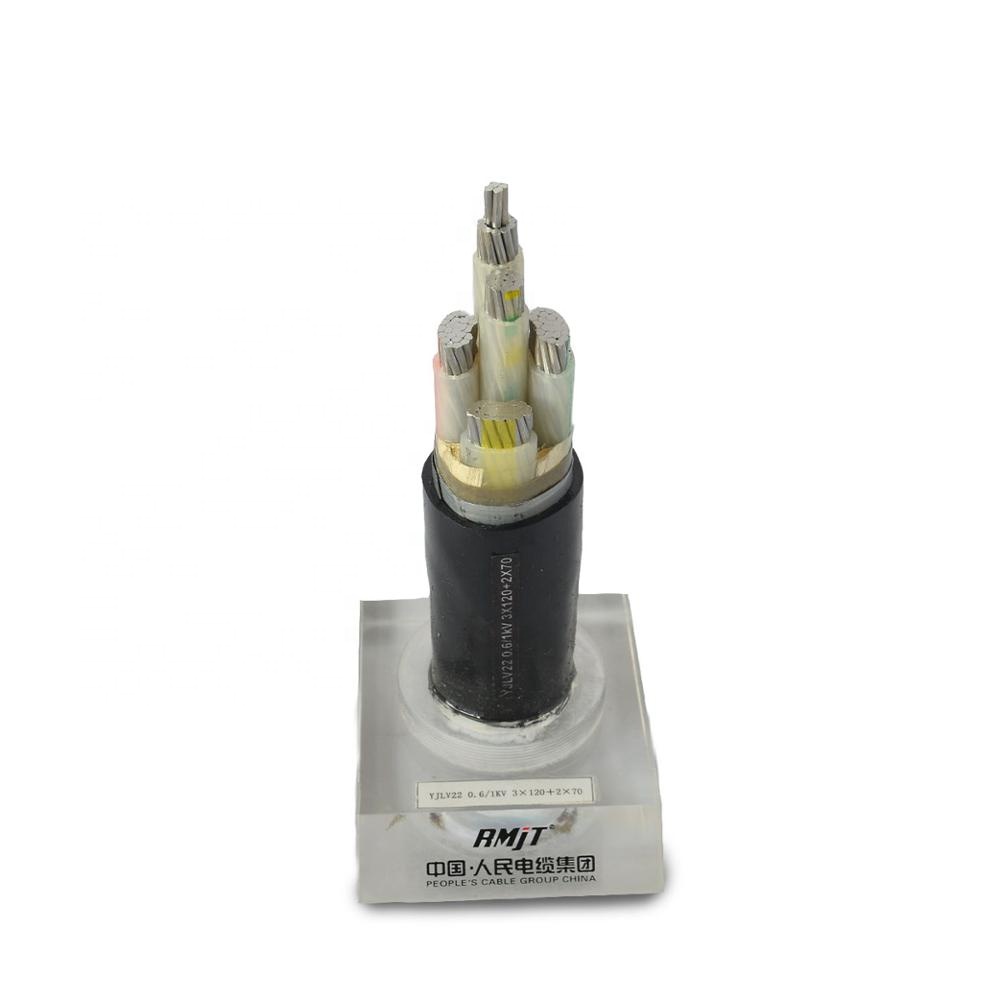

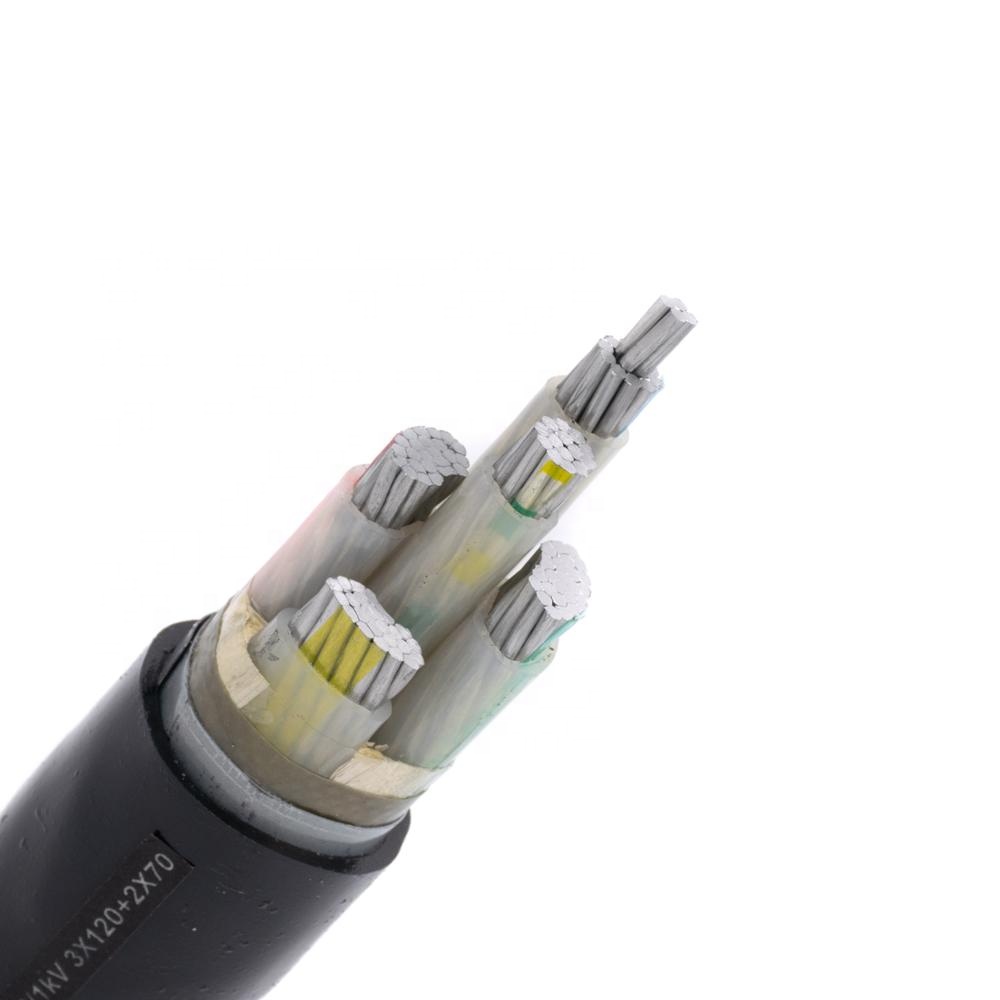

Cable Construction Description

Conductor

Class 1 solid aluminum conductor
Class 2 stranded circular or circular compacted

Insulation

XLPE (Cross-Linked Polyethylene)

Inner Sheath

PVC (Polyvinyl Chloride)

Amoured

STA- Steel Tape Amoured

Non-magnetic amoured material used for single core cable.

Outer Sheath

PVC (Polyvinyl Chloride)

Core Identification

2 core: Blue Brown
3 core: Green/Yellow Blue Brown
4 core: Green/Yellow Brown Black Grey
5 core: Green/Yellow Blue Brown Black Grey
Or Customerized.

Cu/XLPE/STA/PVC

The Main Technical Parameter Of The Cable

1）Cable conductor DC resistance: See the table 1-1
2）AC voltage test: See the table 1-2
3）Allowed continuous current capacity of unarmoured cable: See the table1-3
4）Allowed continuous current capacity of armoured cable: See the table 1-4

Table 1-1 Max. DC resistance of cable conductor at 200C

Rated cross area（mm2）		0.5	0.75	1.0	1.5	2.5	4	6	10
Cu （Ω/km）	Non tinned	36.0	24.5	18.1	12.1	7.41	4.61	3.08	1.83
	Tinned	36.7	24.8	18.2	12.2	7.56	4.70	3.11	1.84
Al  （Ω/km）		/	/	/	18.1	12.1	7.41	4.61	3.08
Rated cross area（mm2）		16	25	35	50	70	95	120	150
Cu （Ω/km）	Non tinned	1.15	0.727	0.524	0.387	0.268	0.193	0.153	0.124
	Tinned	1.16	0.734	0.529	0.391	0.270	0.195	0.154	0.126
Al （Ω/km）		1.91	1.20	0.868	0.641	0.443	0.320	0.253	0.206
Rated cross area（mm2）		185	240	300	400	500	630	800	1000
Cu  （Ω/km）	Non tinned	0.0991	0.0754	0.0601	0.0470	0.0366	0.0283	0.0221	0.0176
	Tinned	0.100	0.0762	0.0607	0.0475	0.0369	0.0286	0.0224	0.0177
Al （ Ω/km）		0.164	0.125	0.100	0.0778	0.0605	0.0469	0.0367	0.0291

Table 1-2 AC voltage test of cable

Rated VoltagekV	0.6/1
Test VoltagekV	3.5
Test Time min	5

Table 1-3 Allowed continuous current capacity of unarmoured cable

Conditions：Environment temperature：400C；
Soil temperature：250C；
Soil thermal receptivity: 2000C·cm/W

ConductorAreamm2	Allowed continuous current capacity in air（A）				Allowed continuous current capacity in soil（A）
	Copper cable		Aluminum cable		Copper cable		Aluminum cable
	Singlecore	Multi core	Singlecore	Multi core	Singlecore	Multi core	Singlecore	Multi core
2.5	34	32	27	25	36	32	27	25
4	44	41	35	32	47	41	35	32
6	56	52	45	42	59	52	46	42
10	77	70	60	53	78	69	59	53
16	100	91	78	70	102	90	77	71
25	132	118	102	91	130	117	104	91
35	164	150	127	114	169	143	117	113
50	196	182	152	146	187	169	139	134
70	251	228	195	178	226	208	174	165
95	305	273	236	214	269	247	208	195
120	351	314	272	246	300	282	239	221
150	401	360	311	278	339	321	269	247
185	461	410	359	319	382	356	300	278
240	546	483	424	378	435	408	348	321
300	611	552	474	419	495	469	391	365
400	716	/	546	/	574	/	456	/

Table 1-4 Allowed continuous current capacity of armoured cable

Conditions：Environment temperature：400C；
Soil temperature：250C；
Soil thermal receptivity: 2000C·cm/W

ConductorAreamm2	Allowed continuous current capacity in air（A）		Allowed continuous current capacity in soil（A）
	Copper core cable	Aluminum core cable	Copper core cable	Aluminum core cable
	Multi core	Multi core	Multi core	Multi core
4	41	32	41	32
6	52	42	52	42
10	70	53	69	53
16	91	70	90	71
25	118	91	117	91
35	150	114	143	113
50	182	146	169	134
70	228	178	208	165
95	273	214	247	195
120	314	246	282	221
150	360	278	321	247
185	410	319	356	278
240	483	378	408	321
300	552	419	469	365
