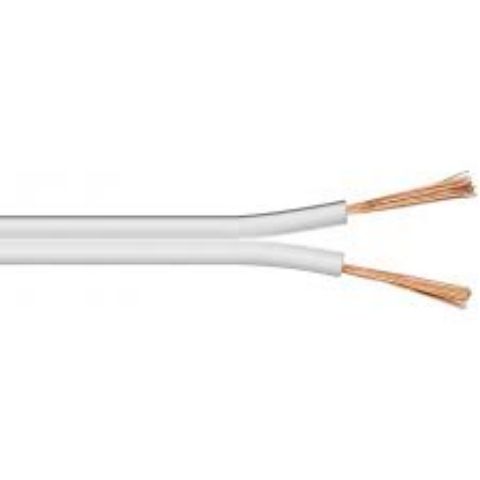

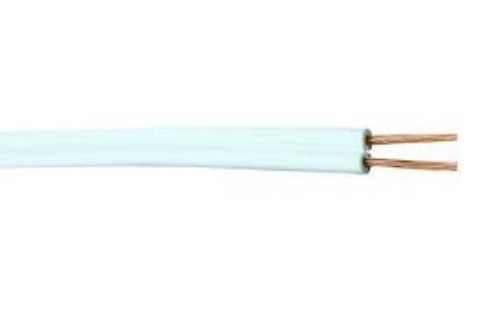

PVC Insulated/PVC Sheathed Flat Wire———H03VV-F、H05VV-F

Rated voltage： 300/500V, 300/500V
Conductor: Class 5, stranded, annealed copper wire
Insulation: PVC
Insulation Color: Red and black (or upon request)
Operating temperature: 0 to 70℃
Min bending radius: 6 x overall insulted diameter

Application

Flexible cable, insulation and outer sheath in PVCcables are used for light portable domestic appliances, but are not suitable for heating and cooking appliances

Standard

BS 6500

Structure

Technical Parameter

Nominal Cross Section (mm2)	Conductor (Nos/mm)	Insulation Thickness (mm)	Sheath Thickness (mm)	Max Overall Diameter of Cable (mm)	Mass of wire (kg/km)
H03VV-F
0.5	2 x 16/0.2	0.5	0.6	6.0	38.1
0.75	2 x 24/0.2	0.5	0.6	6.4	46.3
0.5	3 x 16/0.2	0.5	0.6	6.2	45.6
0.75	3 x 24/0.2	0.5	0.6	6.8	59.3
0.5	4 x 16/0.2	0.5	0.6	6.5	55.2
0.75	4 x 24/0.2	0.5	0.6	7.4	72.6
0.5	5 x 16/0.2	0.5	0.6	7.3	70.8
0.75	5 x 24/0.2	0.5	0.6	8.2	87.1

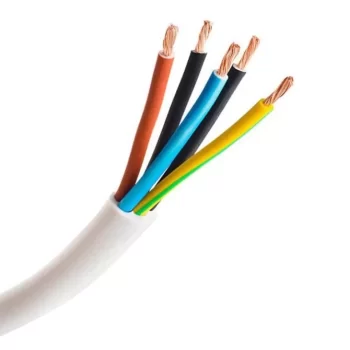

H05VV-F
0.75	2 x 24/0.2	0.6	0.8	7.2	57.0
1.0	2 x 32/0.2	0.6	0.8	7.5	65.0
1.25	2 x 40/0.2	0.7	0.8	8.0	81.2
1.5	2 x 30/0.25	0.7	0.8	8.6	87.3
2.5	2 x 50/0.25	0.8	1.0	10.6	134.3
0.75	3 x 24/0.2	0.6	0.8	7.6	67.8
1.0	3 x 32/0.2	0.6	0.8	8.0	78.6
1.25	3 x 40/0.2	0.7	0.9	8.7	105.3
1.5	3 x 30/0.25	0.7	0.9	9.4	116.2
2.5	3 x 50/0.25	0.8	1.0	11.4	177.4
0.75	4 x 24/0.2	0.6	0.8	8.3	88.5
1.0	4 x 32/0.2	0.6	0.9	9.0	106.0
1.25	4 x 40/0.2	0.7	1.0	10.0	136.5
1.5	4 x 30/0.25	0.7	1.0	10.5	148.7
2.5	4 x 50/0.25	0.8	1.1	12.5	219.8
0.75	5 x 24/0.2	0.6	0.9	9.3	110.2
1.0	5 x 32/0.2	0.6	0.9	9.8	126.6
1.25	5 x 40/0.2	0.7	1.1	11.0	170.3
1.5	5 x 30/0.25	0.7	1.1	11.6	184.0
2.5	5 x 50/0.25	0.8	1.2	13.9	271.8
