Rated voltage： 300/300V
Conductor: BS 6360 Class 5, stranded, annealed copper wire
Insulation: BS 7655 T1 1 PVC Compound
Insulation Color: Red, yellow, blue, black, green, white, purple, gray, orange, pink
Operating temperature: 0 to 70℃

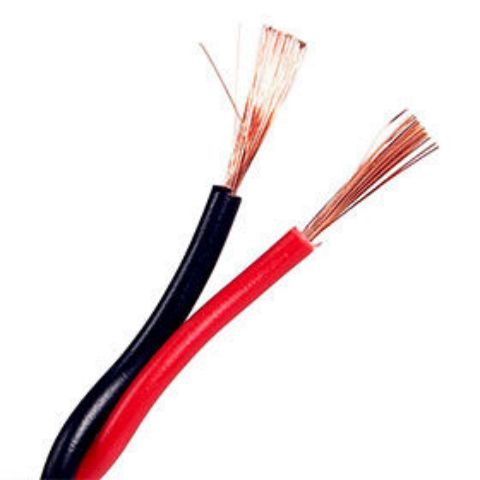

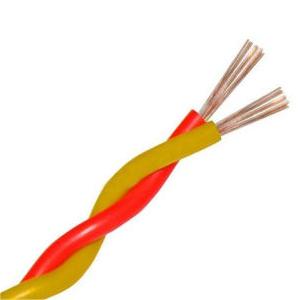

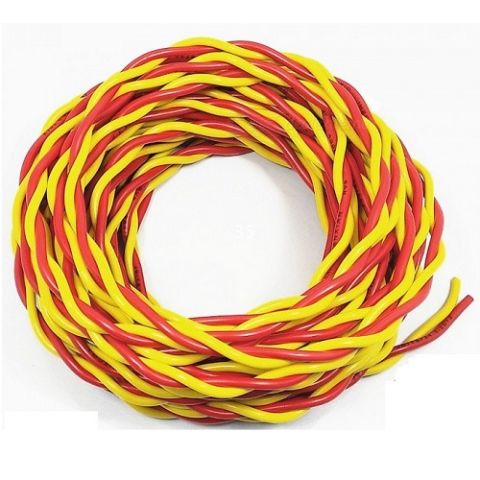

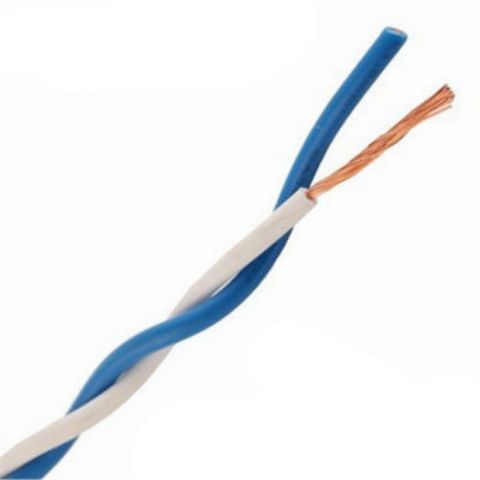

H05V-S cable is twisted pair cable that mostly used for fire alarm system, household appliance, and electronics
BS 6500
Rated voltage： 300/300V
Conductor: BS 6360 Class 5, stranded, annealed copper wire
Insulation: BS 7655 T1 1 PVC Compound
Insulation Color: Red, yellow, blue, black, green, white, purple, gray, orange, pink
Operating temperature: 0 to 70℃
Min bending radius: 6 x overall insulted diameter
| Nominal Cross Section (mm2) | Conductor (Nos/mm) | Insulation Thickness (mm) | Max Overall Diameter (mm) | Mass of wire (kg/km) | Structure of cable |
| 0.5 | 2 x 16/0.2 | 0.6 | 2 x 2.6 | 21.0 | Twisted |
| 0.75 | 2 x 24/0.2 | 0.6 | 2 x 2.8 | 26.5 | Twisted |
| 1.0 | 2 x 32/0.2 | 0.6 | 2 x 3.0 | 30.3 | Twisted |
