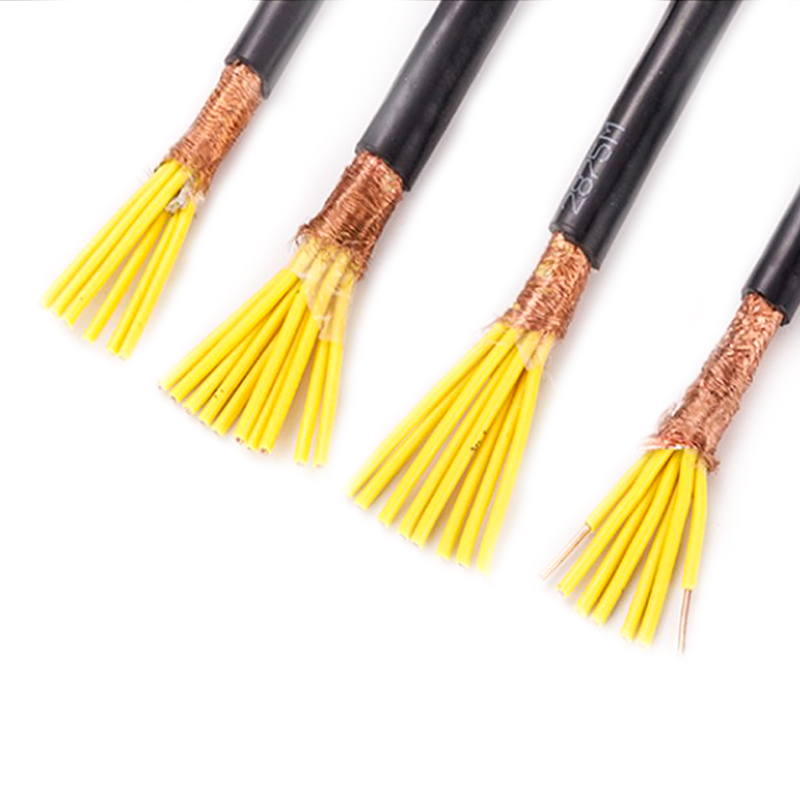

Control Cables Shielded Multi Core Cable Control System PVC Insulated Cable

High strength
Large current carrying capacity
Good catenary property and wear-resistance
Anti-crush and corrosion-proof with simple structure

Applications

The control cable are suitable for the connection of controlling electrical equipment and instrument monitoring and controlling return circuit, electrical protection and measurement in power distribution unit under the circumstance that the rated voltage is up to 450/750V AC.

Property:

(1)The long-term permissible working temperatures are: PVC 70°C, XLPE 90°C
(2)When laying the cable, the ambient temperature of laying should not be lower than 0°C.
(3)When it is flexible structure, not armored but with screen, the minimum bending radius is ≥6D; When it is armored or with copper tape screen, the bending radius is ≥ 12D(D is the cable overall diameter).

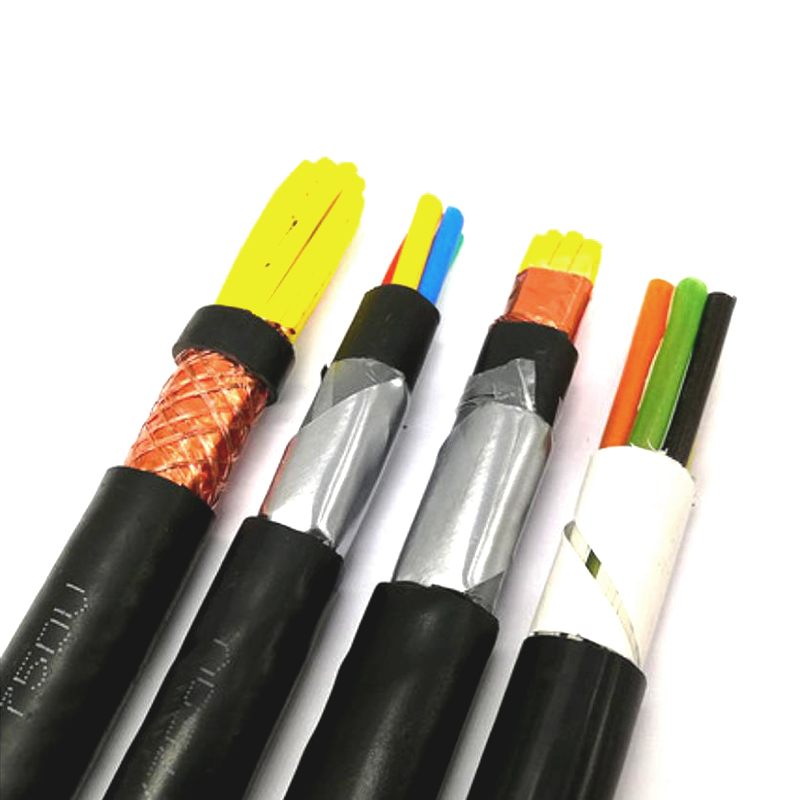

Construction

Main Specs: 2~61 Core: 0.75~2.5mm²; 2~14 Core: 4~6mm²; 2~10 Core: 10mm²

Standard:

The products can be produced according to the Chinese standard GB9330-1998,and the factory can also manufacture the cables following other standards.

Specification:

TypeNameSection Area(mm2)No. of CoreApplication Site
KVVCopper Conductor,PVC Insulated and Sheathed Control Cable0.75 1.0 1.5 2.52-16Permanent installation indoors,in cable ditches or pipes
4 62-14
102-10

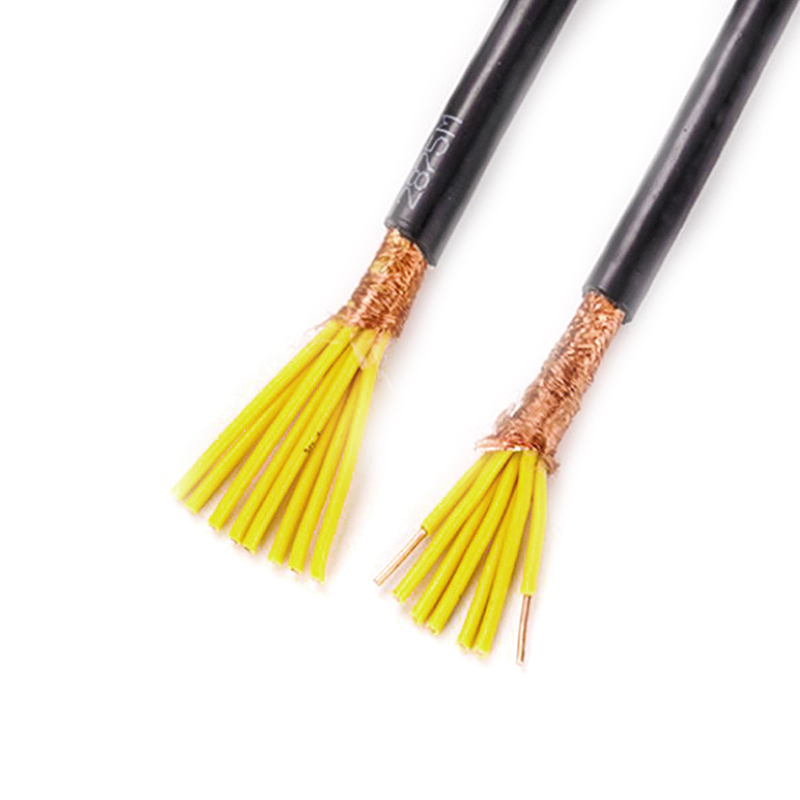

KVVPCopper Conductor,PVC Insulated and Sheathed,Braiding Shielded  Control Cable0.75 1.0 1.5 2.52-61Permanent installation indoors,in cable ditches or pipes where shielding is required
4 62-14
102-10
KVVP2Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable0.75 1.0 1.5 2.54-10Permanent installation indoors,in cable ditches or pipes where shielding is required
4 67-61
104-10
KVV22Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable0.75 1.0 1.5 2.57-61Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force
4 64-14
104-14

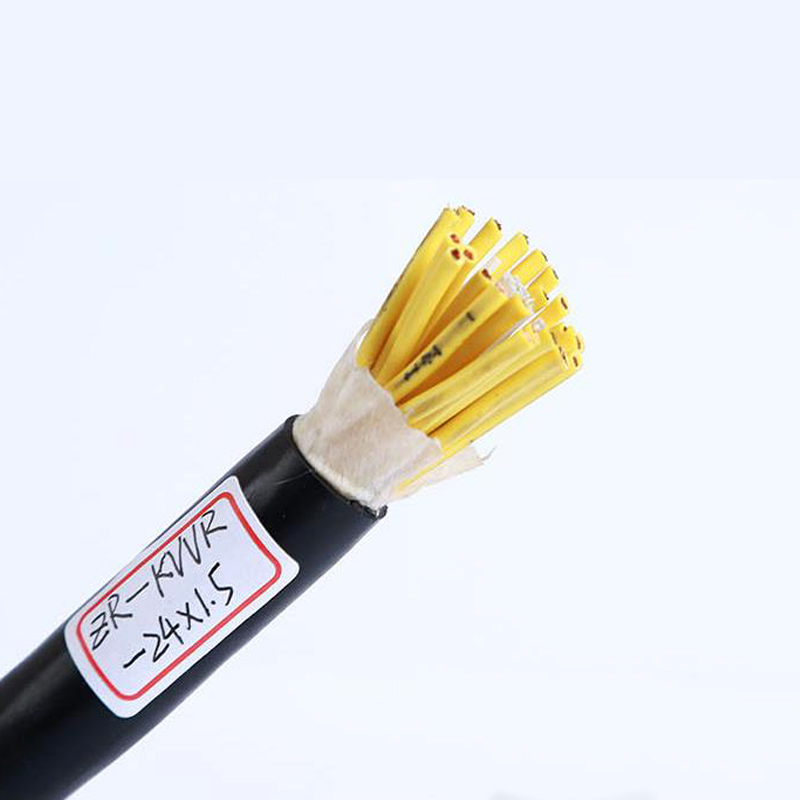

KVVRCopper Conductor,PVC Insulated and Sheathed,Flexible Control Cable0.5-2.54-61Installation indoors where flexibility and movability are required
KVVRPCopper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable0.5 0.75 1.04-61Installation indoors where flexibility shielding and movability are required
1.5 2.54-48
KYJVCopper Conductor,XLPE Insulated and PVC Sheathed Control Cable0.75 1.0 1.5 2.52-16Permanent installation indoors,in cable ditches or pipes
4 62-14
102-10
KYJVPCopper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Control Cable0.75 1.0 1.5 2.52-61Permanent installation indoors,in cable ditches or pipes where shielding is required
4 62-14
102-10
KYJV22Copper Conductor,XLPE Insulated,Steel-tape Armoured,PVC Sheathed Control Cable0.75 1.0 1.5 2.57-61Permanent installation indoors,in cable ditches,pipes or underground Be cable to with stand stronger external mechanical force
4 64-14
104-10
KYJVP2Copper Conductor,XLPE Insulated,Copper tape Screened,PVC Sheathed Control Cable0.75 1.0 1.5 2.57-61Permanent installation indoors,in cable ditches or pipes where shielding is required
4 64-14
104-10
KYJVRCopper Conductor,XLPE Insulated,PVC Sheathed Flexible Control Cable0.5-2.54-61Installation indoors where flexibility and movability are required
KYJVRPCopper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Flexible Control Cable0.5 0.75 1.04-61
