25×1.5 mm2 KVVP Control Cable 19 Core PVC Insulated sheathed Copper Electrical Wire Cable

High strength
Large current carrying capacity
Good catenary property and wear-resistance
Anti-crush and corrosion-proof with simple structure

Request a Quote
Share

KVV KVVP KVV22 KVVP22 KVVR KVVRP Control Cable

Standard

The control cable can be produced according to the standard GB9330-1988, and the factory can also manufacture the cables in accordance with other standards.

Application

The control cable are suitable for the wiring of electrical controlling equipments and instruments, monitoring and controlling return circuit, electrical protection and measurement in power distribution unit under the circumstance that the rated voltage is up to 450/750V AC.

Service Conditions

(1)The long-time working temperature of conductor of PVC insulated control cable is 70°C
The long-time working temperature of conductor of XLPE insulated control cable is 90°C

(2) The temperature for laying the cables can not be lower than 0°C. Permissible bending radius(r): Unarmoured cable: R≥ 6D; (D: Outer diameter of the cable); Armoured or copper-tape screened cable: R≥ 12D; Shielded flexible cable: R≥ 6D

TypeNameSection Area(mm2)No. of CoreApplication Site

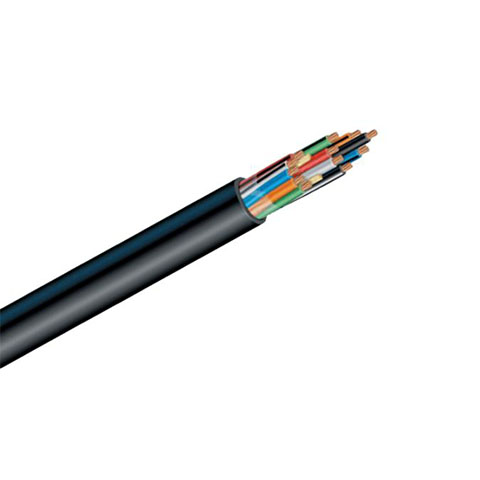

KVVCopper Conductor,PVC Insulated and Sheathed Control Cable0.75 1.0 1.5 2.52-16Permanent installation indoors,in cable ditches or pipes
4 62-14
102-10

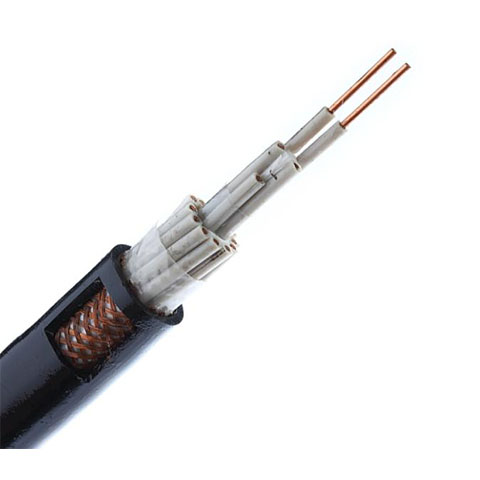

KVVPCopper Conductor,PVC Insulated and Sheathed,Braiding Shielded  Control Cable0.75 1.0 1.5 2.52-61Permanent installation indoors,in cable ditches or pipes where shielding is required
4 62-14
102-10

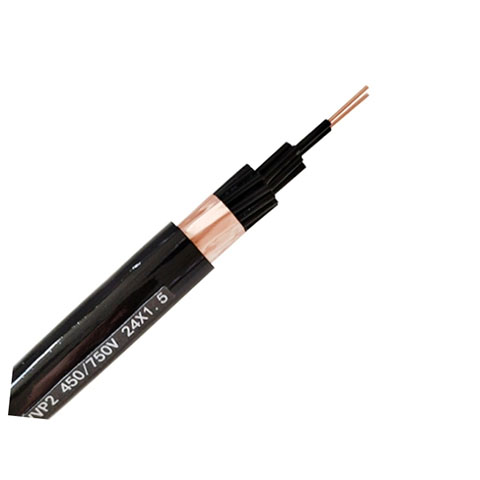

KVVP2Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable0.75 1.0 1.5 2.54-10Permanent installation indoors,in cable ditches or pipes where shielding is required
4 67-61
104-10

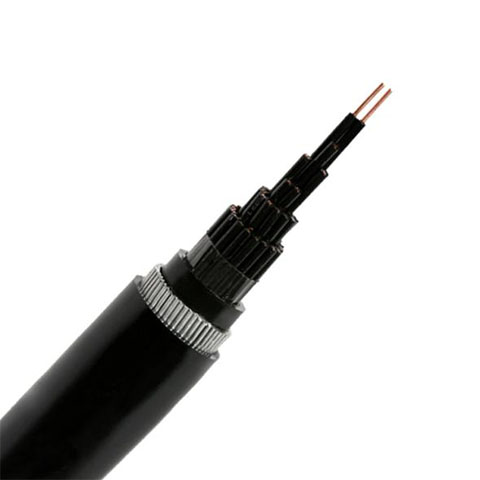

KVV22Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable0.75 1.0 1.5 2.57-61Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force
4 64-14
104-14
KVVRCopper Conductor,PVC Insulated and Sheathed,Flexible Control Cable0.5-2.54-61Installation indoors where flexibility and movability are required
KVVRPCopper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable0.5 0.75 1.04-61Installation indoors where flexibility shielding and movability are required

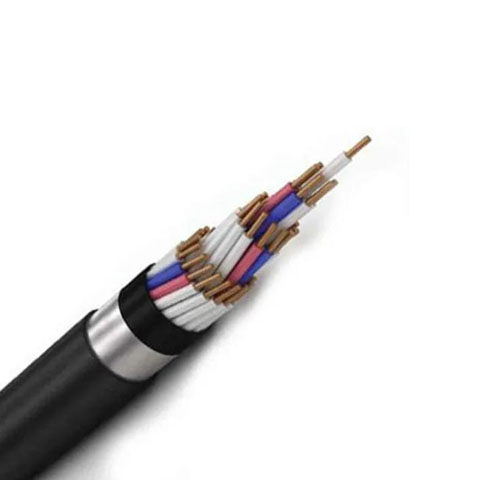

Construction of cable

Dimension and Weight of Control Cable

SpecificationDimension  mmWeight  kg/km
KVVKVVPKVV22KVVRKVVKVVPKVV22KVVR
2×0.758.09.8//73114//
2×1.08.810.5//82125//
2×1.510.011.5//110157//
2×2.511.512.5//155201//
2×412.514.5//187346//
2×614.016.0//241351//
2×1017.519.0//291503//
3×0.758.810.5//87130//
3×19.211.0//98143//
3×1.510.512.0//127177//
3×2.512.013.5//181238//
3×413.515.5//234347//
3×615.017.0//329470//
3×1018.520.0//511632//
4×0.759.611.0/9.4104153/114
4×1.010.011.5/10.0119163/123
4×1.511.512.5/11.5156203/158
4×2.513.015.017.013.0226330458228
4×415.016.518.5/315436549/
4×616.518.019.0/441530629/
4×1020.022.025.0/644768947/
5×0.7510.511.5/10.5119162/129
5×1.011.012.0/11.0142193/152
5×1.512.013.5/12.6190248/200
5×2.513.316.518.014.5290390523305
5×414.718.519.5/383501616/
5×618.019.521.5/506627738/
5×1022.524.026.5/8309871126/
7×0.7511.012.515.510.8146203317150
7×1.011.513.016.011.5169217355172
7×1.513.515.017.513.0226331425243
7×2.516.017.519.016.0353472554370
7×417.518.220.5/473602702/
7×619.519.922.5/653790901/
7×1024.024.228.5/108212161397/
14×0.7515.017.018.516.0286397461297
14×1.016.017.519.517.0322444530334
14×1.518.520.022.019.0432551685446
14×2.521.523.524.522.0670800914684
14×424.526.026.5/92910781172/
14×627.029.029.0/124613011509/
19×0.7516.518.020.017.5348457593360
19×1.017.519.021.518.0408517645422
19×1.520.522.523.521.0534675824565
19×2.524.025.526.524.5105410541120899
24×0.7518.419.821.019.04001524668415
24×1.019.521.422.019.8510635777517
24×1.523.524.324.824.27448671001759
24×2.527.728.728.528.11111125813761129
27×0.7518.820.221.419.4477600712493
27×1.020.521.822.420.8579714821596
27×1.524.024.825.324.68079571064825
27×2.528.329.329.128.61209135914811225
30×0.7519.421.322.020.6524636742539
30×1.021.622.423.022.0651787884667
30×1.524.825.826.125.388210931151897
30×2.529.330.330.929.71327142718091344
37×0.7522.022.823.422.6601705938617
37×1.023.224.024.523.67719121014792
37×1.526.427.627.827.41051119713311072
37×2.531.533.233.632.01592174221391613
44×0.7524.425.425.725.17468881077765
44×1.025.8227.026.926.291610361184938
44×1.529.7430.732.230.61251139518171275
44×2.536.037.237.636.51951210125321975
48×0.7524.825.826.025.583392711271789
48×1.026.227.227.326.6968109812362019
48×1.530.231.232.631.11326148818912936
48×2.536.637.338.137.12071241726633843
52×0.7525.426.426.626.189910101192913
52×1.026.927.927.9527.31035118813051057
52×1.531.032.733.3732.01421157919971450
52×2.537.539.239.038.02222239728202250
61×0.7526.827.827.927.696810871350992
61×1.028.429.429.328.81187131714701210
61×1.533.534.735.034.41680183722421699
61×2.540.241.441.140.7259927503175/
