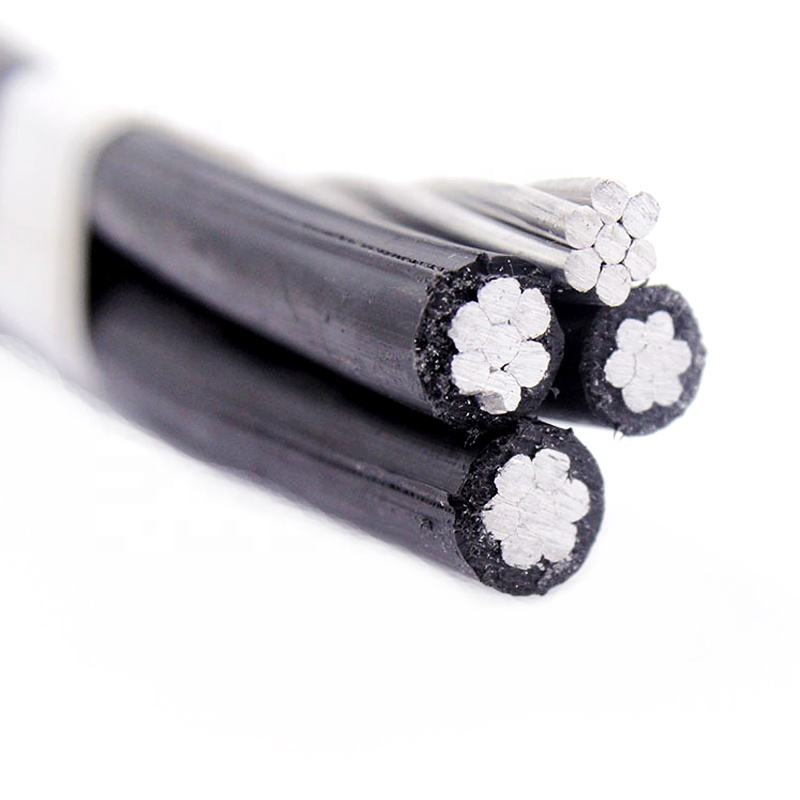

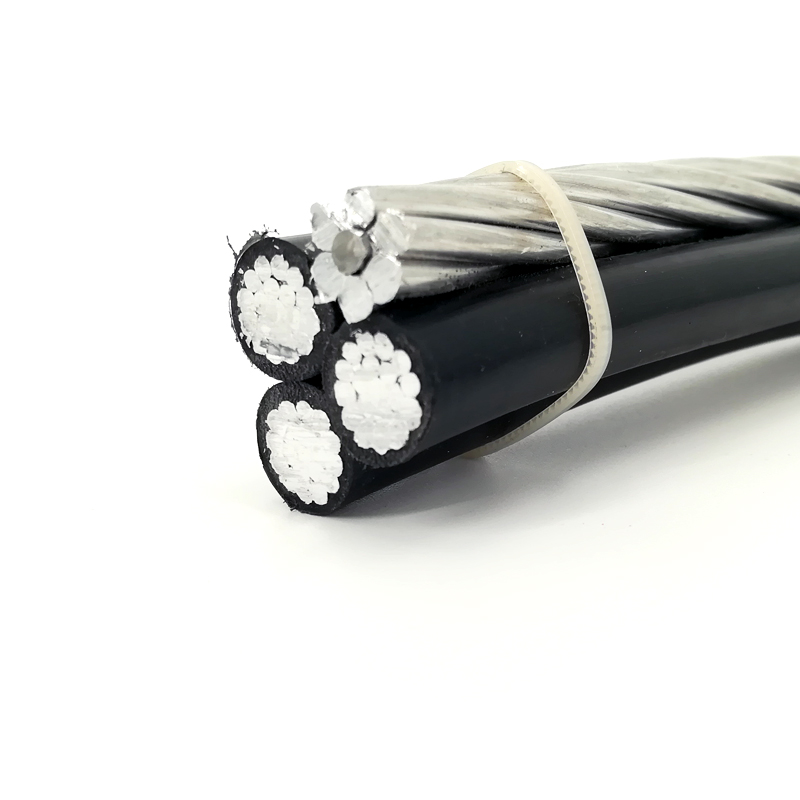

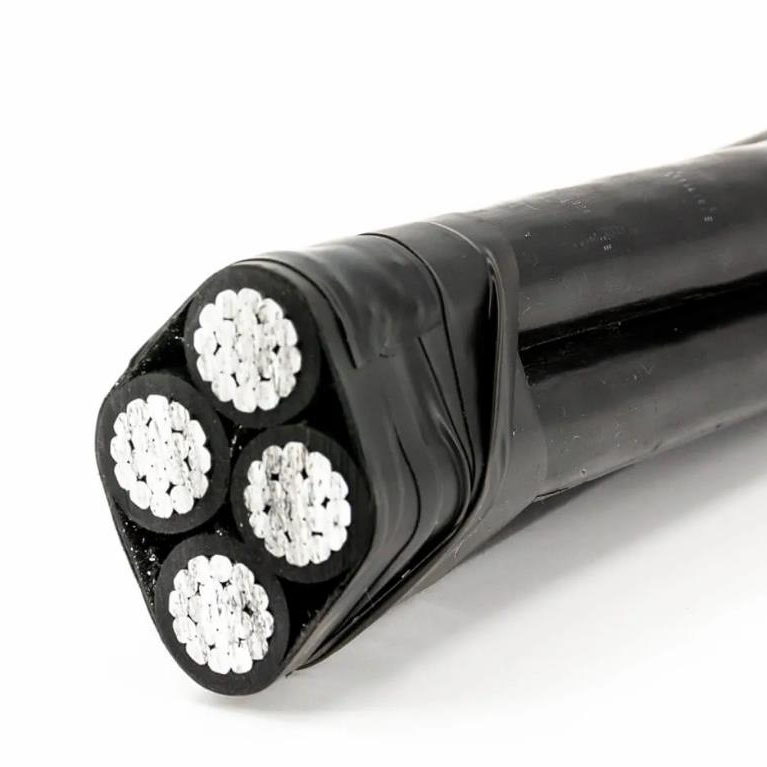

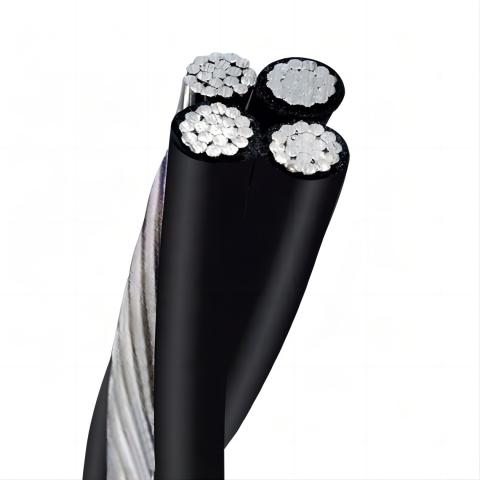

QUADRUPLEX  SERVICE  DROP Aluminum conductor ABC cable insulated overhead aerial

Applicaton

RMJT Cable overhead service drop cable is intended to deliver power from the secondary power line or
pole-mounted transformer to the service-entrance conductors at the user’s building or other structure.

Duplex is intended to deliver single-phase power.
Triplex is intended to deliver 3-wire single-phase power.
Quadruplex is intended to deliver 4-wire three-phase power.

Multiplex Overhead Service Drop are ideal for use as pole line secondary with service splices at the pole
or in mid-span.

Features

Multiplex overhead service drop cables are resistant to weathering, abrasion, tearing, cutting and
Chemicals.

Working rated voltage is 0.6/1KV with a maximum conductor-rated operating temperature of 90C for Cross-linked Polyethylene insulation, and temperature is 75C if insulation is Polyethylene.

Construction

One. two or three aluminum conductors insulated with extruded lead-free Cross-linked Polyethylene
(XLPE) cabled with a bare conductor which serves as a supporting neutral. Neutral-Supported cable
meets the requirements of ANS/ICEA Standard S-76-474.

The all-aluminum stranded conductors are Class A or Class B compressed 1350-H19 aluminum. Solid
conductors are H16 temper.

The insulation is extruded black lead-free Cross-linked Polyethylene(XLPE). PE and PVC are optional.

The all-aluminum stranded conductor is Class AA or Class A 1350-H19 (AAC) or 6201-T81 alloy (AAAC).

The aluminum conductor steel reinforced (ACSR) is Class AA. The direction of lay of the outer layer is
right-hand.

Phase identification is provided by means of white print legend markings or ribs on the phase conductor
depending on the cable construction.
