TRIPLEX SERVICE DROP cable aerial bundle cable overhead Aluminium conductor abc cable

Applicaton

RMJT Cable overhead service drop cable is intended to deliver power from the secondary power line or
pole-mounted transformer to the service-entrance conductors at the user’s building or other structure.

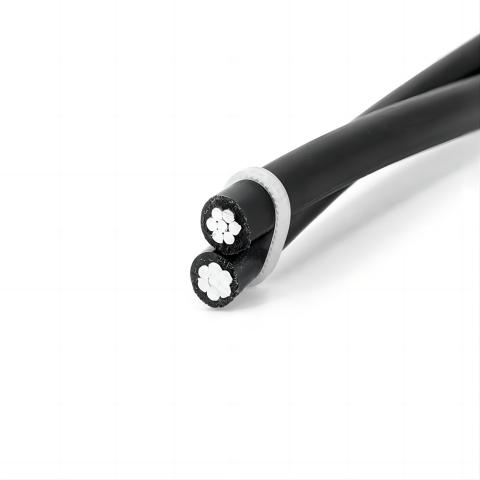

Duplex is intended to deliver single-phase power.

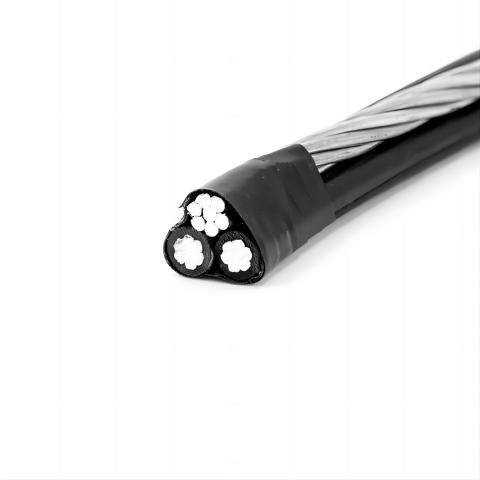

Triplex is intended to deliver 3-wire single-phase power.

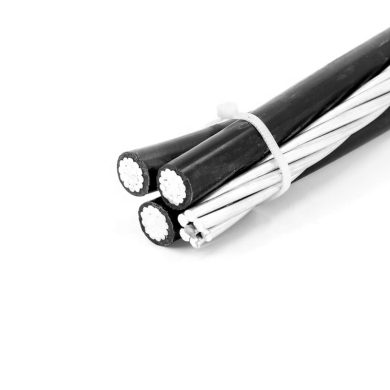

Quadruplex is intended to deliver 4-wire three-phase power.

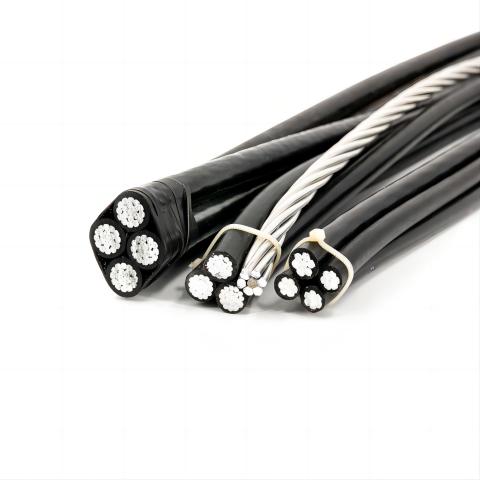

Multiplex Overhead Service Drop are ideal for use as pole line secondary with service splices at the pole
or in mid-span.

Features

Multiplex overhead service drop cables are resistant to weathering, abrasion, tearing, cutting and
Chemicals.

Working rated voltage is 0.6/1KV with a maximum conductor-rated operating temperature of 90C for Cross-linked Polyethylene insulation, and temperature is 75C if insulation is Polyethylene.

Construction

One. two or three aluminum conductors insulated with extruded lead-free Cross-linked Polyethylene
(XLPE) cabled with a bare conductor which serves as a supporting neutral. Neutral-Supported cable
meets the requirements of ANS/ICEA Standard S-76-474.

The all-aluminum stranded conductors are Class A or Class B compressed 1350-H19 aluminum. Solid
conductors are H16 temper.

The insulation is extruded black lead-free Cross-linked Polyethylene(XLPE). PE and PVC are optional.

The all-aluminum stranded conductor is Class AA or Class A 1350-H19 (AAC) or 6201-T81 alloy (AAAC).

The aluminum conductor steel reinforced (ACSR) is Class AA. The direction of lay of the outer layer is
right-hand.

Phase identification is provided by means of white print legend markings or ribs on the phase conductor
depending on the cable construction.

TRIPLEX SERVICE DROP
