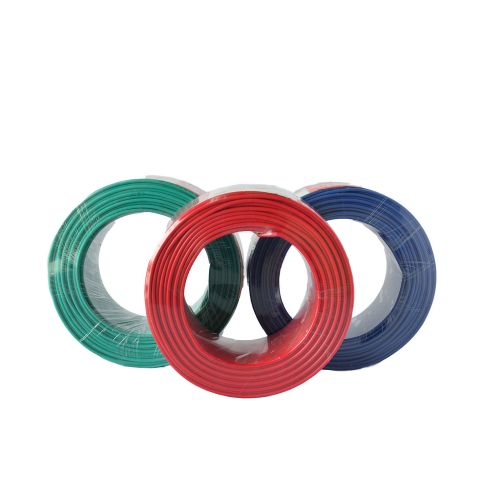

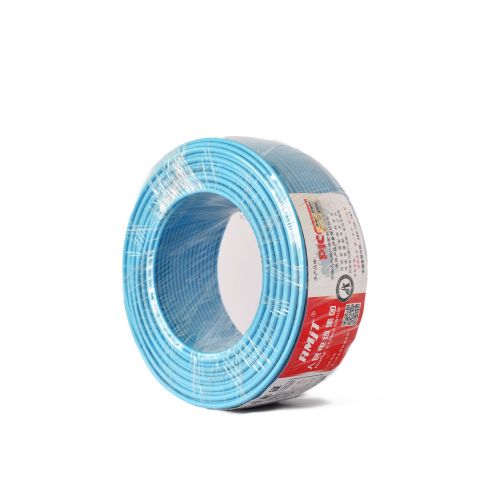

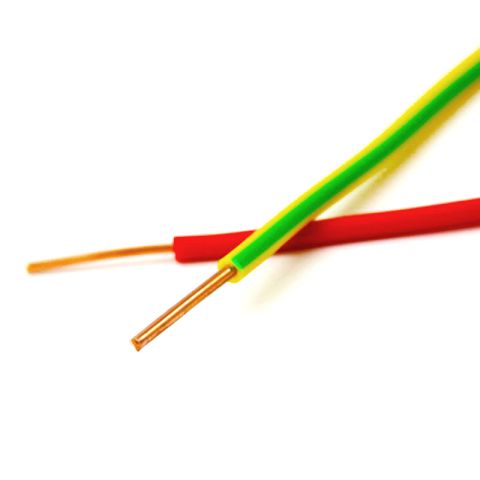

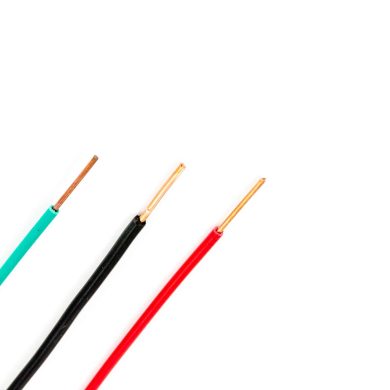

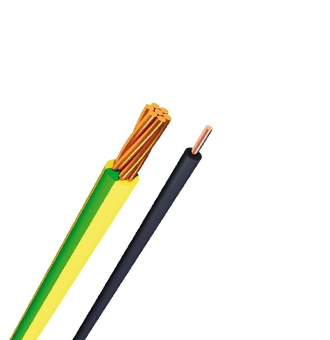

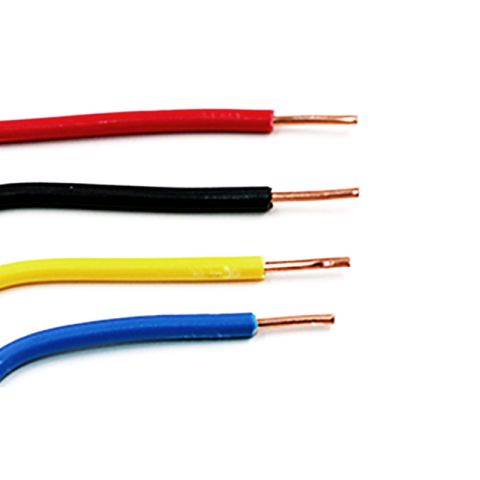

PVC single core
Temperature range : flexiable +5°C to +70°C; fixed -30°C to +80°C
Nominal voltage: AC U0/U 450/750 V
Test voltage: 2500 V
Minimum bending radius: fixed 4x Outer-Ø
Installation in electrical conduits, on or under plaster or similar enclosed systems.
Suitable for protected and fixed installation in lighting systems or switching and control
devices up to and including 1000 V AC voltage or up to 750 V DC voltage against earth.
Standard : BS 6004\IEC60227
Rated voltage： 450/750V
Conductor: BS 6360 Class 1 or 2, Annealed wire
Insulation: PVC Compound
Insulation Color: Red, yellow, blue, black, green, white, purple, gray, orange, pink
Operating temperature: 0 to 70℃
| Nominal Cross Section (mm2) | Class of Conductor | Conductor (Nos/mm) | Insulation Thickness (mm) | Max Overall Diameter | Mass of wire (kg/km) | Maximum Conductor Resistance at 20℃ | Min. Insulation Resistance at 70℃ 20℃ |
| 1.0'* | 1 | 1/1.13 | 0.6 | 2.7 | 15 | 18.1 | 0.013 |
| 1.5"* | 1 | 1/1.38 | 0.7 | 3.2 | 21 | 12.1 | 0.011 |
| 1.5 | 2 | 7/0.53 | 0.7 | 3.3 | 22 | 12.1 | 0.01 |
| 2.5 | 1 | 1/1.78 | 0.8 | 3.9 | 32 | 7.41 | 0.01 |
| 2.5 | 2 | 7/0.67 | 0.8 | 4.0 | 34 | 7.41 | 0.009 |
| 4 | 2 | 1/2.23 | 0.8 | 4.4 | 49 | 4.61 | 0.0077 |
| 6 | 2 | 1/2.74 | 0.8 | 5.0 | 68 | 3.08 | 0.0065 |
| 10 | 2 | 7/1.35 | 1.0 | 6.7 | 115 | 1.83 | 0.0065 |
| 16 | 2 | 7/1.7 | 1.0 | 7.8 | 170 | 1.15 | 0.005 |
| 25 | 2 | 7/2.14 | 1.2 | 9.7 | 265 | 0.727 | 0.005 |
| 35 | 2 | 19/1.53 | 1.2 | 10.9 | 360 | 0.524 | 0.0043 |
| 50 | 2 | 19/1.78 1988 | 1.4 | 12.8 | 490 | 0.387 | 0.0043 |
| 70 | 2 | 19/2.14 | 1.4 | 14.6 | 690 | 0.268 | 0.0035 |
| 95 | 2 | 19/2.53 | 1.6 | 17.1 | 950 | 0.193 | 0.0035 |
| 120 | 2 | 37/2.03 | 1.6 | 18.8 | 1180 | 0.153 | 0.0032 |
| 150 | 2 | 37/2.25 | 1.8 | 20.9 | 1480 | 0.124 | 0.0032 |
| 185 | 2 | 37/2.52 | 2.0 | 23.3 | 1810 | 0.0991 | 0.0032 |
| 240 | 2 | 61/2.25 | 2.2 | 26.6 | 2360 | 0.0754 | 0.0032 |
| 300 | 2 | 61/2.52 | 2.4 | 29.6 | 2960 | 0.0601 | 0.003 |
| 400 | 2 | 61/2.85 | 2.6 | 33.2 | 3820 | 0.047 | 0.0028 |
