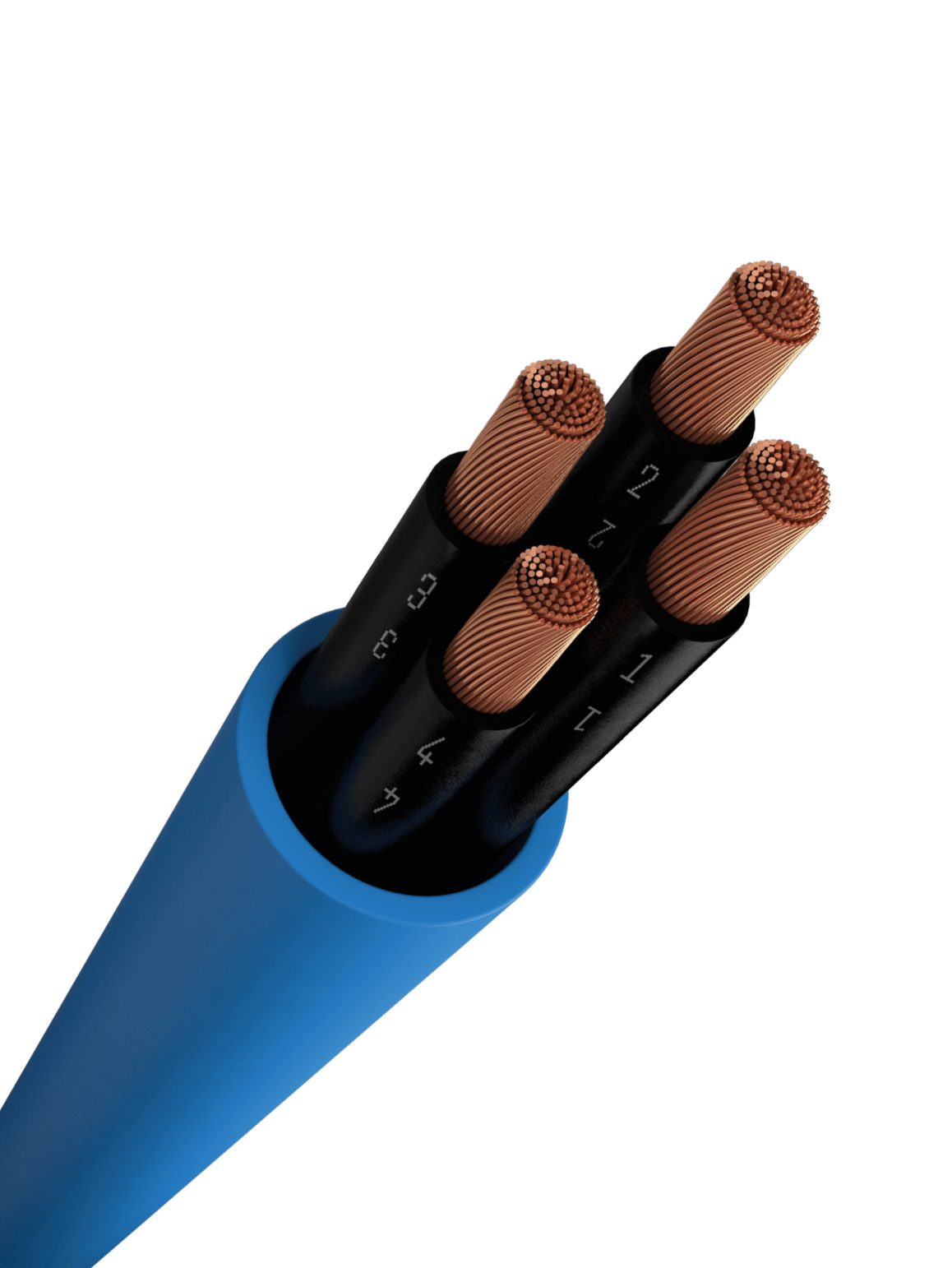

These control cables are often referred to by the application, such as machinery supply cable, motor cable and robotics cable. They are also known as multi-core cables, control flex and control flexible cables.
These control cables are often referred to by the application, such as machinery supply cable, motor cable and robotics cable. They are also known as multi-core cables, control flex and control flexible cables.
GB/9330-88 Plastics insulates to control the cable
1)Rated voltage AC U0/U is 450/750V.
2)Long-term allowable working temperature of cable conductor:
PVC and PE insulate is 70℃
XLPE insulate is 90℃
3) The laying temperature of the cable should not be lower than 0℃.
4) Cable allowable bending radius:
-Unarmored cable, not less than 6 times the outer diameter of the cable;
-Cables with armor or copper tape shielding, not less than 12 times the outer diameter of the cable;
-Flexible cable with braided shielding, not less than 6 times the outer diameter of the cable.
| Type | Name | Application |
| KVV | Copper core PVC insulated PVC sheathed control cable | Laying indoors, cable trenches, pipelines and other fixed occasions |
| KYV | Copper core polyethylene insulated PVC sheathed control cable | |
| KYJV | Copper core XLPE insulated PVC sheathed control cable | |

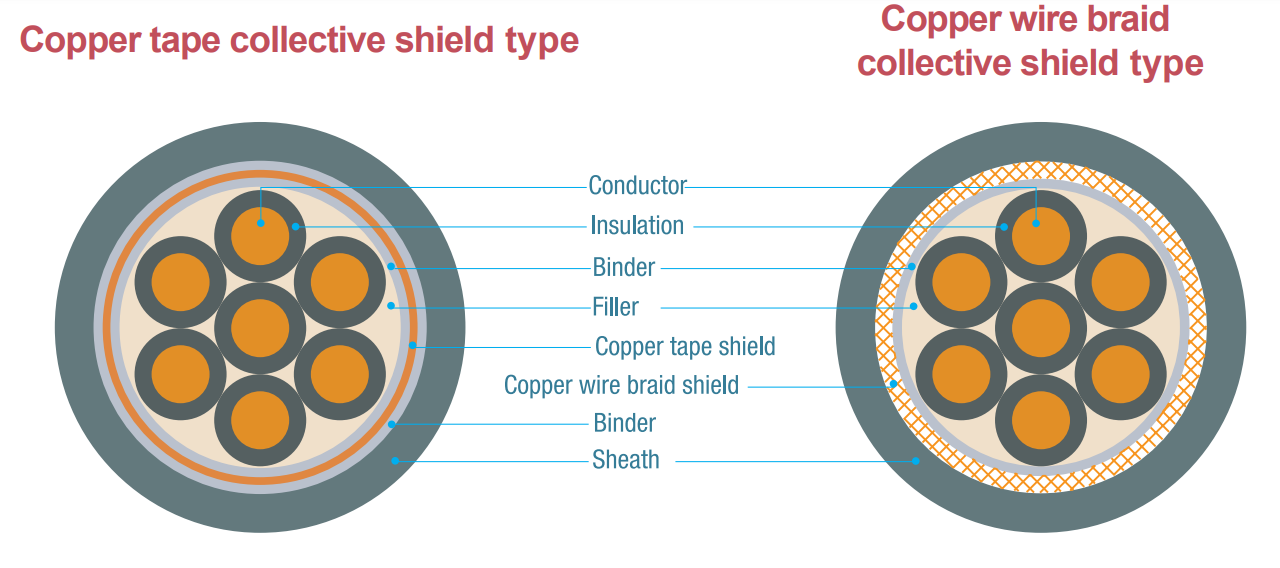

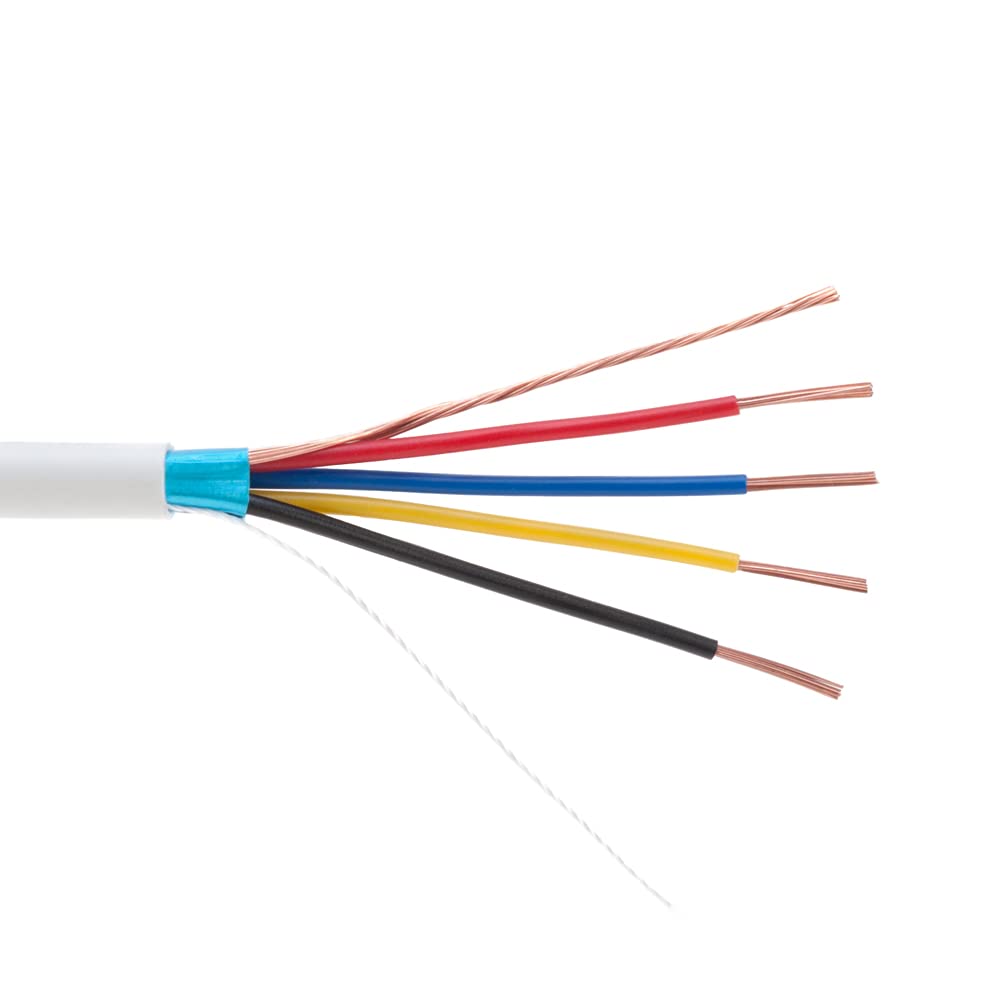

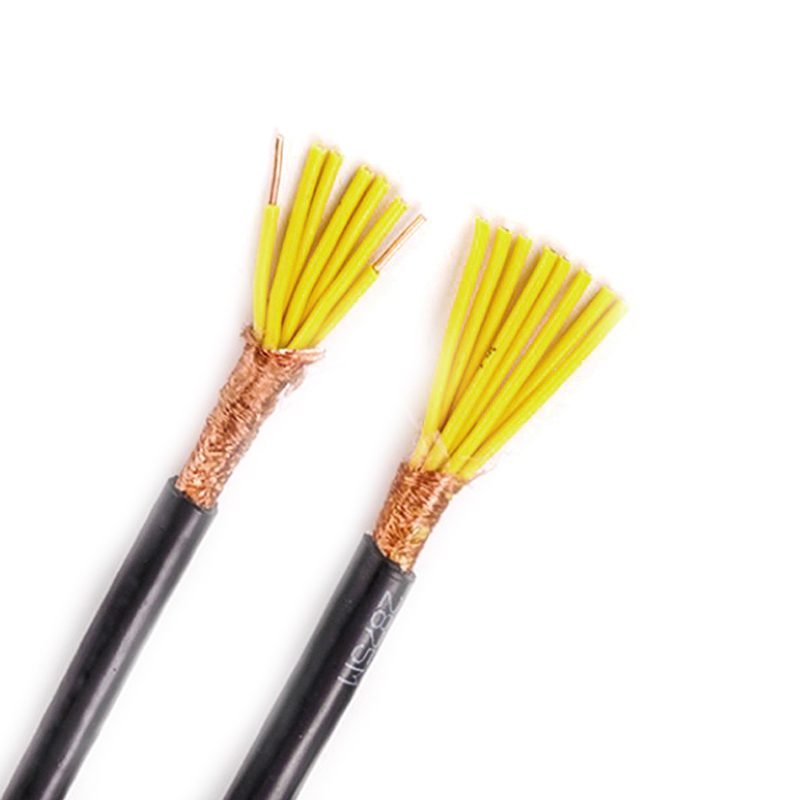

| KVVP | Copper core PVC insulated PVC sheathed braided shielded control cable | Installed indoors, cable trenches, pipelines and other fixed occasions that require shielding |
| KY(J)VP | Copper core (cross-linked) polyethylene insulated PVC sheathed braided shielded control cable | |
| KVVP2 | Copper core PVC insulated PVC sheathed copper tape shielded control cable | |
| KY(J)VP2 | Copper core (cross-linked) polyethylene insulated PVC sheathed copper tape shielded control cable | |
| KVV22 | Copper core PVC insulated PVC sheathed steel tape armored control cable | It can be directly buried in the soil layer, and the cable can withstand a certain mechanical force. |
| KVV22P | Copper core PVC insulated PVC sheathed braided shielded steel tape armored control cable | |
| KVV22P2 | Copper core PVC insulated PVC sheathed copper tape shielded steel tape armored control cable | |

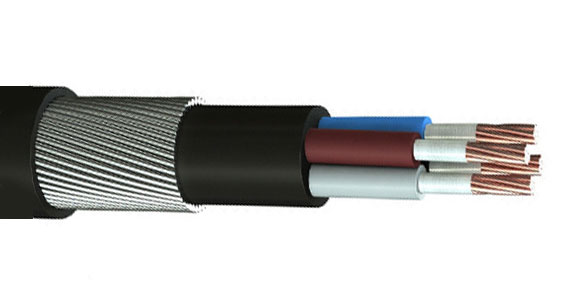

| KVV32 | Copper core PVC insulated PVC sheathed thin steel wire armored control cable | It can be laid in the vertical shaft, and the cable can withstand large mechanical force |
| KVVR | Copper core PVC insulated PVC sheathed flexible control cable | Removable use |
| KVVRP | Copper core PVC insulated PVC sheathed braided shield control flexible cable | Occasions with movement and shielding requirements |
| Areamm２ | Conductor construction | Conductor resistancesΩ/km | InsulateThickness | Min insulates resistance at 700CΩ·km | ||
| Class | Number/diametermm | Non Tin-Coat annealed Copper | Tin-coat Copper | |||
| 0.5 | 5 | 16/0.20 | 39.0 | 40.1 | 0.6 | 0.013 |
| 0.75 | 1 | 1/0.97 | 24.5 | 24.8 | 0.6 | 0.012 |
| 2 | 7/0.37 | 24.5 | 24.8 | 0.6 | 0.014 | |
| 5 | 24/0.20 | 26.0 | 26.7 | 0.6 | 0.011 | |
| 1.0 | 1 | 1/1.13 | 18.1 | 18.2 | 0.6 | 0.011 |
| 2 | 7/0.43 | 18.1 | 18.2 | 0.6 | 0.013 | |
| 5 | 32/0.20 | 19.5 | 20.0 | 0.6 | 0.010 | |
| 1.5 | 1 | 1/1.38 | 12.1 | 12.2 | 0.7 | 0.011 |
| 2 | 7/0.52 | 12.1 | 12.2 | 0.7 | 0.010 | |
| 5 | 30/0.25 | 13.3 | 13.7 | 0.7 | 0.010 | |
| 2.5 | 1 | 1/1.78 | 7.41 | 7.56 | 0.8 | 0.010 |
| 2 | 7/0.68 | 7.41 | 7.56 | 0.8 | 0.009 | |
| 5 | 50/0.25 | 7.98 | 8.21 | 0.8 | 0.009 | |
| 4 | 1 | 1/2.25 | 4.61 | 4.70 | 0.8 | 0.0085 |
| 2 | 7/0.85 | 4.61 | 4.70 | 0.8 | 0.0077 | |
| 6 | 1 | 1/2.76 | 3.08 | 3.11 | 1.0 | 0.0070 |
| 2 | 7/1.04 | 3.08 | 3.11 | 1.0 | 0.0065 | |
| 10 | 2 | 7/1.35 | 1.83 | 1.84 | 0.0065 | |
| Specification | Dimension mm | Weight kg/km | ||||||
| KVV | KVVP | KVV22 | KVVR | KVV | KVVP | KVV22 | KVVR | |
| 2×0.75 | 8.0 | 9.8 | / | / | 73 | 114 | / | / |
| 2×1.0 | 8.8 | 10.5 | / | / | 82 | 125 | / | / |
| 2×1.5 | 10.0 | 11.5 | / | / | 110 | 157 | / | / |
| 2×2.5 | 11.5 | 12.5 | / | / | 155 | 201 | / | / |
| 2×4 | 12.5 | 14.5 | / | / | 187 | 346 | / | / |
| 2×6 | 14.0 | 16.0 | / | / | 241 | 351 | / | / |
| 2×10 | 17.5 | 19.0 | / | / | 291 | 503 | / | / |
| 3×0.75 | 8.8 | 10.5 | / | / | 87 | 130 | / | / |
| 3×1 | 9.2 | 11.0 | / | / | 98 | 143 | / | / |
| 3×1.5 | 10.5 | 12.0 | / | / | 127 | 177 | / | / |
| 3×2.5 | 12.0 | 13.5 | / | / | 181 | 238 | / | / |
| 3×4 | 13.5 | 15.5 | / | / | 234 | 347 | / | / |
| 3×6 | 15.0 | 17.0 | / | / | 329 | 470 | / | / |
| 3×10 | 18.5 | 20.0 | / | / | 511 | 632 | / | / |
| 4×0.75 | 9.6 | 11.0 | / | 9.4 | 104 | 153 | / | 114 |
| 4×1.0 | 10.0 | 11.5 | / | 10.0 | 119 | 163 | / | 123 |
| 4×1.5 | 11.5 | 12.5 | / | 11.5 | 156 | 203 | / | 158 |
| 4×2.5 | 13.0 | 15.0 | 17.0 | 13.0 | 226 | 330 | 458 | 228 |
| 4×4 | 15.0 | 16.5 | 18.5 | / | 315 | 436 | 549 | / |
| 4×6 | 16.5 | 18.0 | 19.0 | / | 441 | 530 | 629 | / |
| 4×10 | 20.0 | 22.0 | 25.0 | / | 644 | 768 | 947 | / |
| 5×0.75 | 10.5 | 11.5 | / | 10.5 | 119 | 162 | / | 129 |
| 5×1.0 | 11.0 | 12.0 | / | 11.0 | 142 | 193 | / | 152 |
| 5×1.5 | 12.0 | 13.5 | / | 12.6 | 190 | 248 | / | 200 |
| 5×2.5 | 13.3 | 16.5 | 18.0 | 14.5 | 290 | 390 | 523 | 305 |
| 5×4 | 14.7 | 18.5 | 19.5 | / | 383 | 501 | 616 | / |
| 5×6 | 18.0 | 19.5 | 21.5 | / | 506 | 627 | 738 | / |
| 5×10 | 22.5 | 24.0 | 26.5 | / | 830 | 987 | 1126 | / |
| 7×0.75 | 11.0 | 12.5 | 15.5 | 10.8 | 146 | 203 | 317 | 150 |
| 7×1.0 | 11.5 | 13.0 | 16.0 | 11.5 | 169 | 217 | 355 | 172 |
| 7×1.5 | 13.5 | 15.0 | 17.5 | 13.0 | 226 | 331 | 425 | 243 |
| 7×2.5 | 16.0 | 17.5 | 19.0 | 16.0 | 353 | 472 | 554 | 370 |
| 7×4 | 17.5 | 18.2 | 20.5 | / | 473 | 602 | 702 | / |
| 7×6 | 19.5 | 19.9 | 22.5 | / | 653 | 790 | 901 | / |
| 7×10 | 24.0 | 24.2 | 28.5 | / | 1082 | 1216 | 1397 | / |
| 14×0.75 | 15.0 | 17.0 | 18.5 | 16.0 | 286 | 397 | 461 | 297 |
| 14×1.0 | 16.0 | 17.5 | 19.5 | 17.0 | 322 | 444 | 530 | 334 |
| 14×1.5 | 18.5 | 20.0 | 22.0 | 19.0 | 432 | 551 | 685 | 446 |
| 14×2.5 | 21.5 | 23.5 | 24.5 | 22.0 | 670 | 800 | 914 | 684 |
| 14×4 | 24.5 | 26.0 | 26.5 | / | 929 | 1078 | 1172 | / |
| 14×6 | 27.0 | 29.0 | 29.0 | / | 1246 | 1301 | 1509 | / |
| 19×0.75 | 16.5 | 18.0 | 20.0 | 17.5 | 348 | 457 | 593 | 360 |
| 19×1.0 | 17.5 | 19.0 | 21.5 | 18.0 | 408 | 517 | 645 | 422 |
| 19×1.5 | 20.5 | 22.5 | 23.5 | 21.0 | 534 | 675 | 824 | 565 |
| 19×2.5 | 24.0 | 25.5 | 26.5 | 24.5 | 1054 | 1054 | 1120 | 899 |
| 24×0.75 | 18.4 | 19.8 | 21.0 | 19.0 | 4001 | 524 | 668 | 415 |
| 24×1.0 | 19.5 | 21.4 | 22.0 | 19.8 | 510 | 635 | 777 | 517 |
| 24×1.5 | 23.5 | 24.3 | 24.8 | 24.2 | 744 | 867 | 1001 | 759 |
| 24×2.5 | 27.7 | 28.7 | 28.5 | 28.1 | 1111 | 1258 | 1376 | 1129 |
| 27×0.75 | 18.8 | 20.2 | 21.4 | 19.4 | 477 | 600 | 712 | 493 |
| 27×1.0 | 20.5 | 21.8 | 22.4 | 20.8 | 579 | 714 | 821 | 596 |
| 27×1.5 | 24.0 | 24.8 | 25.3 | 24.6 | 807 | 957 | 1064 | 825 |
| 27×2.5 | 28.3 | 29.3 | 29.1 | 28.6 | 1209 | 1359 | 1481 | 1225 |
| 30×0.75 | 19.4 | 21.3 | 22.0 | 20.6 | 524 | 636 | 742 | 539 |
| 30×1.0 | 21.6 | 22.4 | 23.0 | 22.0 | 651 | 787 | 884 | 667 |
| 30×1.5 | 24.8 | 25.8 | 26.1 | 25.3 | 882 | 1093 | 1151 | 897 |
| 30×2.5 | 29.3 | 30.3 | 30.9 | 29.7 | 1327 | 1427 | 1809 | 1344 |
| 37×0.75 | 22.0 | 22.8 | 23.4 | 22.6 | 601 | 705 | 938 | 617 |
| 37×1.0 | 23.2 | 24.0 | 24.5 | 23.6 | 771 | 912 | 1014 | 792 |
| 37×1.5 | 26.4 | 27.6 | 27.8 | 27.4 | 1051 | 1197 | 1331 | 1072 |
| 37×2.5 | 31.5 | 33.2 | 33.6 | 32.0 | 1592 | 1742 | 2139 | 1613 |
| 44×0.75 | 24.4 | 25.4 | 25.7 | 25.1 | 746 | 888 | 1077 | 765 |
| 44×1.0 | 25.82 | 27.0 | 26.9 | 26.2 | 916 | 1036 | 1184 | 938 |
| 44×1.5 | 29.74 | 30.7 | 32.2 | 30.6 | 1251 | 1395 | 1817 | 1275 |
| 44×2.5 | 36.0 | 37.2 | 37.6 | 36.5 | 1951 | 2101 | 2532 | 1975 |
| 48×0.75 | 24.8 | 25.8 | 26.0 | 25.5 | 833 | 927 | 1127 | 1789 |
| 48×1.0 | 26.2 | 27.2 | 27.3 | 26.6 | 968 | 1098 | 1236 | 2019 |
| 48×1.5 | 30.2 | 31.2 | 32.6 | 31.1 | 1326 | 1488 | 1891 | 2936 |
| 48×2.5 | 36.6 | 37.3 | 38.1 | 37.1 | 2071 | 2417 | 2663 | 3843 |
| 52×0.75 | 25.4 | 26.4 | 26.6 | 26.1 | 899 | 1010 | 1192 | 913 |
| 52×1.0 | 26.9 | 27.9 | 27.95 | 27.3 | 1035 | 1188 | 1305 | 1057 |
| 52×1.5 | 31.0 | 32.7 | 33.37 | 32.0 | 1421 | 1579 | 1997 | 1450 |
| 52×2.5 | 37.5 | 39.2 | 39.0 | 38.0 | 2222 | 2397 | 2820 | 2250 |
| 61×0.75 | 26.8 | 27.8 | 27.9 | 27.6 | 968 | 1087 | 1350 | 992 |
| 61×1.0 | 28.4 | 29.4 | 29.3 | 28.8 | 1187 | 1317 | 1470 | 1210 |
| 61×1.5 | 33.5 | 34.7 | 35.0 | 34.4 | 1680 | 1837 | 2242 | 1699 |
| 61×2.5 | 40.2 | 41.4 | 41.1 | 40.7 | 2599 | 2750 | 3175 | / |
