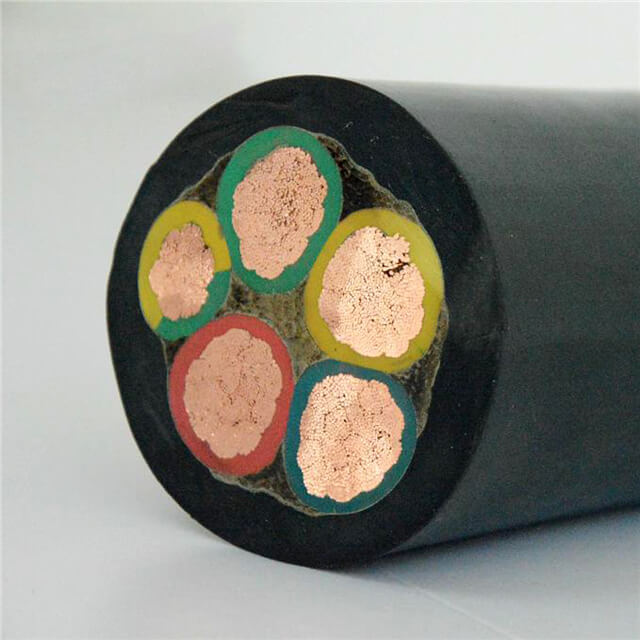

General Purpose Stranded Copper Conductor Soft Rubber Cable
1. Introduction
It is used for household electrical appliances; electrical tools and various mobile electrical equipments of AC rated voltage 450/750V or lower.
2. The product carries out the standard:
GB5023-1997 Rubber insulates cables voltages up to and including 450/750V.
JB8735-1998 Rubber insulates cables wire and Soft line voltages up to and including 450/750V.
3. Type, description &application of the product
Type | Description | Main use | Standard |
245IEC51 (RX) | Weave soft cable rubber insulates | Be applicable to power supply conjunction of ambulation electric appliances equipments and tool | GB5013.4 |
245IEC53 (YZ) | Common strength rubber soft line | ||
245IEC57 (YZW) | Common flexibility rubber soft line | ||
245IEC66 (YCW) | Heavy type flexibility rubber soft cable | ||
YQ、YQW | Light type rubber soft cable | Be applicable to power supply conjunction of ambulation electric appliances equipments and tool | JB8735.2 |
YZ、YZW | Medium- type rubber soft cable | ||
YZB、YZWB | Medium- type rubber flat type soft cable | ||
YC、YCW | Heavy- type rubber flat type soft cable |
4. The specification scope of the cable
Type | U0/U V | Conductor type | Conductor tallest temperature 0C | Cores number | Nominal Area mm2 |
Standard
|
245IEC51(RX) | 300/300 | 5 | 60 | 2、3 | 0.75~1.5 | GB5013. 4 |
245IEC53(YZ) | 300/500 | 5 | 60 | 2~5 | 0.75~2.5 | |
245IEC57(YZW) | 300/500 | 5 | 60 | |||
245IEC66(YCW) | 450/750 | 5 | 60 | 1~5 | 1.5~25 | |
YQ、YQW | 300/300 | 5 | 60 | 2、3 | 0.3、0.5 | JB8735. 2 |
YZ、YZW | 300/500 | 5 | 60 | 2、3、4、5 | 4、6 | |
3+1 | 1.5~6 | |||||
6 | 0.75~6 | |||||
YZB、YZWB | 300/500 | 5 | 60 | 2~6 | 0.75~6 | |
YC | 450/750 | 5 | 60 | 1 | 1.5~400 | |
2 | 1.5~95 | |||||
3、4 | 1.5~150 | |||||
5 | 1.5~25 | |||||
3+1 | 2.5~150 | |||||
YCW | 450/750 | 5 | 60 | 2 | 35~95 | |
3 | 120~150 | |||||
3+1 | 2.5~150 |
Cable experiment voltage and experiment time (20±50C)
Rated voltage (V) | 300/300 | 300/500 | 450/750 |
AC Experiment voltage (V) | 2000 | 2000 | 2500 |
Experiment time (min) | 5 | 5 | 5 |
Cu- class 5 type soft conductor single silk biggest diameter and biggest DC resistances in 200C of cable
Nominal Area mm2 | 0.5 | 0.75 | 1 | 1.5 | 2.5 | 4 | 6 | |
Single wire biggest diameter mm | 0.21 | 0.21 | 0.21 | 0.26 | 0.26 | 0.31 | 0.31 | |
Resistances Ω/km | No tin-plated | 39.0 | 26.0 | 19.5 | 13.3 | 7.98 | 4.95 | 3.30 |
Tin- plated | 40.1 | 26.7 | 20.0 | 13.7 | 8.21 | 5.09 | 3.39 | |
Nominal Area mm2 | 10 | 16 | 25 | 35 | 50 | 70 | 95 | |
Single wire biggest diameter mm | 0.41 | 0.41 | 0.41 | 0.41 | 0.41 | 0.51 | 0.51 | |
Resistances Ω/km | No tin-plated | 1.91 | 1.21 | 0.780 | 0.554 | 0.386 | 0.272 | 0.206 |
Tin- plated | 1.95 | 1.24 | 0.795 | 0.565 | 0.393 | 0.277 | 0.210 | |
Nominal Area mm2 | 120 | 150 | 185 | 240 | 300 | 400 | 500 | |
Single wire biggest diameter mm | 0.51 | 0.51 | 0.51 | 0.51 | 0.51 | 0.51 | 0.61 | |
Resistances Ω/km | No tin-plated | 0.161 | 0.129 | 0.106 | 0.0801 | 0.0641 | 0.0495 | 0.0391 |
Tin- plated | 0.164 | 0.132 | 0.108 | 0.0817 | 0.0654 | 0.0495 | 0.0391 | |
