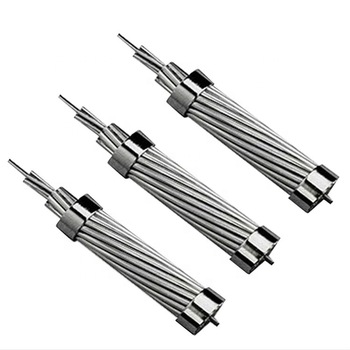

Cable AAC Aluminum Conductor AAC

Stranded 1350 aluminum conductors shown in this section of data are classified as follows:
Class AA For bare conductors usually used in overhead lines.
Class A For conductors to be covered with weather-resistant materials and for bare conductors where greater flexibility is required.
Compact strand conductor for use in bare overhead applications or for use with weather-resistant coverings or insulations is also available.
Classes refer to stranding and are an indication of relative conductor flexibility, AA being the least flexible, C the most flexible

  • AAC Conductor
  • RMJT
  • 7614900000
  • BS, ASTM, IEC, etc
Quantity:

Cable AAC Aluminum Conductor AAC



APPLICATIONS:

 Stranded 1350 aluminum conductors shown in this section of data are classified as follows:



Class AA For bare conductors usually used in overhead lines.



Class A For conductors to be covered with weather-resistant materials and for bare conductors where greater flexibility is required.



Compact strand conductor for use in bare overhead applications or for use with weather-resistant coverings or insulations is also available.



Classes refer to stranding and are an indication of relative conductor flexibility, AA being the least flexible, C the most flexible

CONSTRUCTIONM:

ALUMINUM WIRES ARE CONCENTRICALLY STRANDED

Aluminum alloy 1350-H19 wires, concentrically stranded.



Specifications



AAC bare conductors meet or exceed the following ASTM specifications :


B-230 Aluminum Wire, 1250-H19 for Electrical Purposes



B-231 Aluminum Conductors, Concentric-Lay-Stranded



B-400 Compact Round Concentric-Lay-Stranded Aluminum 1350 Conductors

standards:

all aluminum conductor meets or exceeds the following standards:IEC61089,BS215,DIN48201,ASTMB231,BS EN50182,GB/T1179-2008

NOTES:

Resistance is calculated using ASTM standard increments of stranding and metal conductivity of 52.5% IACS, AC resistance at 60Hz



Current ratings are based on 75 conductor temperature, 25 ambient, 2ft/s wind, 96/watts/sq.ft sun, .05 coefficients of emissivity and absorption.



ab5



AAC Standard   BS215



Code Name

Nominal Aluminum Area

Stranding and Wire Diameter

Sectional Area

Approximate Overall Diameter

Linear Mass

Calculated Breaking Load

Calculated D.C. Resistance at 20 ℃

Current Rating

mm 2

mm

mm 2

mm

kg/km

daN

Ω/km

A

Midge

22

7/2.06

23.33

6.18

64

399

1.227

114

Aphis

25

7/3.35

26.4

7.2

73

411

1.081

134

Gnat

25

7/2.21

26.8

6.6

73

459

1.066

135

Weevil

30

3/3.66

31.6

7.9

86

486

0.9082

163

Mosquito

35

7/2.59

37

7.8

101

603

0.7762

188

Ladybird

40

7/2.79

42.8

8.4

117

687

0.6689

210

Ant

50

7/3.10

52.83

9.3

145

828

0.5419

181

Fly

60

7/3.40

63.55

10.2

174

990

0.4505

199

Bluebottle

70

7/3.66

73.7

11

202

1134

0.3881

228

Earwig

75

7/3.78

78.5

11.4

215

1194

0.3644

242

Grasshopper

80

7/3.91

84.1

11.7

230

1278

0.3406

251

Clegg

90

7/4.17

95.6

12.5

262

1453

0.2994

285

Beetle

100

19/2.67

106

13.4

293

1742

0.2704

295

Wasp

100

7/4.39

106

13.17

290

1600

0.2702

271

Bee

125

7/4.90

132

14.7

361

1994

0.2169

330

Cricket

150

7/5.36

157.9

16.1

432

2385

0.1818

395

Hornet

150

19/3.25

157.6

16.25

434

2570

0.1825

346

Caterpillar

175

19/3.53

186

17.7

512

2863

0.1547

410

Chafer

200

19/3.78

213.2

18.9

587

3240

0.1349

414

Spider

225

19/3.99

236.9

20

652

3601

0.1211

462

Cockroach

250

19/4.22

265.7

21.1

731

4040

0.1083

470

Butterfly

300

19/4.65

322.7

23.25

888

4875

0.08916

528

Drone

350

37/3.58

373.3

25.1

1029

5745

0.07741

612

Moth

350

19/5.00

373.2

25

1027

5637

0.07711

612

Centipede

400

37/3.78

415.2

26.46

1145

6310

0.06944

619

Locust

400

19/5.36

428.5

26.8

1179

6473

0.0671

656

Maybug

450

37/4.09

486.9

28.6

1342

7401

0.05931

729

Scorpion

500

37/4.27

529.5

29.9

1460

7998

0.05441

790

Cicada

600

37/4.65

628.6

32.6

1733

9495

0.04588

940

Tarantula

750

37/5.23

794.6

36.6

2191

12010

0.03627

1150
