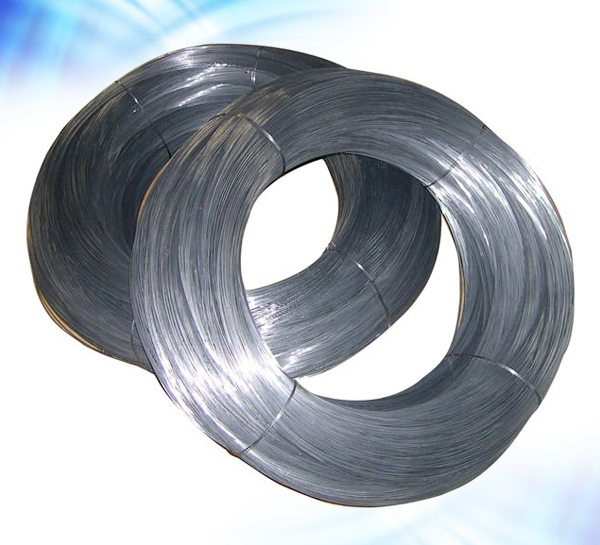

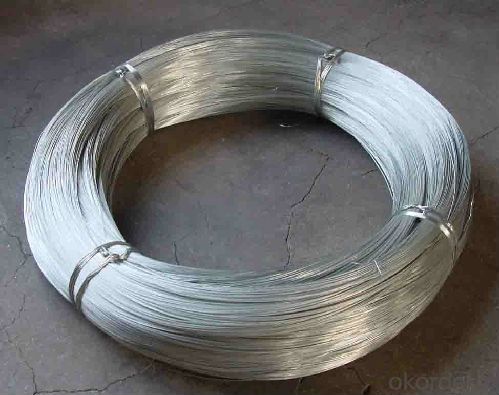

Application: the galvanized steel wire(GSW) can be used for the core of ACSR(aluminium conductor steel wire reinforced) conductor, armored cable, galvanized steel wire strand, etc. The GSW manufactured by People's Cable Group Co., Ltd has excellent mechanical property, best quality of coating and nice condition of surface.
| Diameter | Tensile Strength | Weight of Zinc |
| mm | mPa | g/m2 |
| 1.24-2.25 | 1340-1620 | 185-215 |
| 2.25-3.00 | 1310-1590 | 230 |
| 3.00-3.5 | 1290-1520 | 245 |
| 3.5-4.25 | 1290-1520 | 260 |
| 4.25-4.75 | 1290-1520 | 275 |
| 4.75-5.5 | 1290-1520 | 290 |
Detail Technical Data:
| Intensity Level | Wire Diameter | Min. Tensile Strength | Min. Stress With 1% Extension | Min. Extension Percentage When L=250 | Min. Number of 360° twists | Diameter of Testing Mandril |
| mm | mPa | mPa | % | multiple | ||
| General | 1.24-2.25 | 1340 | 1170 | 3 | 16 | 1 |
| 2.25-2.75 | 1310 | 1140 | 3 | 16 | 1 | |
| 2.75-3.00 | 1310 | 1140 | 3.5 | 16 | 1 | |
| 3.00-3.50 | 1290 | 1100 | 3.5 | 14 | 1 | |
| 3.50-4.25 | 1290 | 1100 | 4.0 | 12 | 1 | |
| 4.25-4.75 | 1290 | 1100 | 4.0 | 12 | 1 | |
| 4.75-5.50 | 1290 | 1100 | 4.0 | 12 | 1 | |
| High | 1.24-2.25 | 1450 | 1310 | 2.5 | 16 | 3 |
| 2.25-2.75 | 1410 | 1280 | 2.5 | 16 | 3 | |
| 2.75-3.00 | 1410 | 1280 | 3.0 | 16 | 4 | |
| 3.00-3.50 | 1410 | 1240 | 3.0 | 14 | 4 | |
| 3.50-4.25 | 1380 | 1170 | 3.0 | 12 | 4 | |
| 4.25-4.75 | 1380 | 1170 | 3.0 | 12 | 4 | |
| 4.75-5.50 | 1380 | 1170 | 3.0 | 12 | 4 | |
| Very high | 1.24-2.25 | 1620 | 1450 | 2.0 | 14 | 4 |
| 2.25-2.75 | 1590 | 1410 | 2.0 | 14 | 4 | |
| 2.75-3.00 | 1590 | 1410 | 2.5 | 12 | 5 | |
| 3.00-3.50 | 1550 | 1380 | 2.5 | 12 | 5 | |
| 3.50-4.25 | 1520 | 1340 | 2.5 | 10 | 5 | |
| 4.25-4.75 | 1520 | 1340 | 2.5 | 10 | 5 | |
| 4.75-5.50 | 1520 | 1270 | 2.5 | 10 | 5 |
