1.Introduction

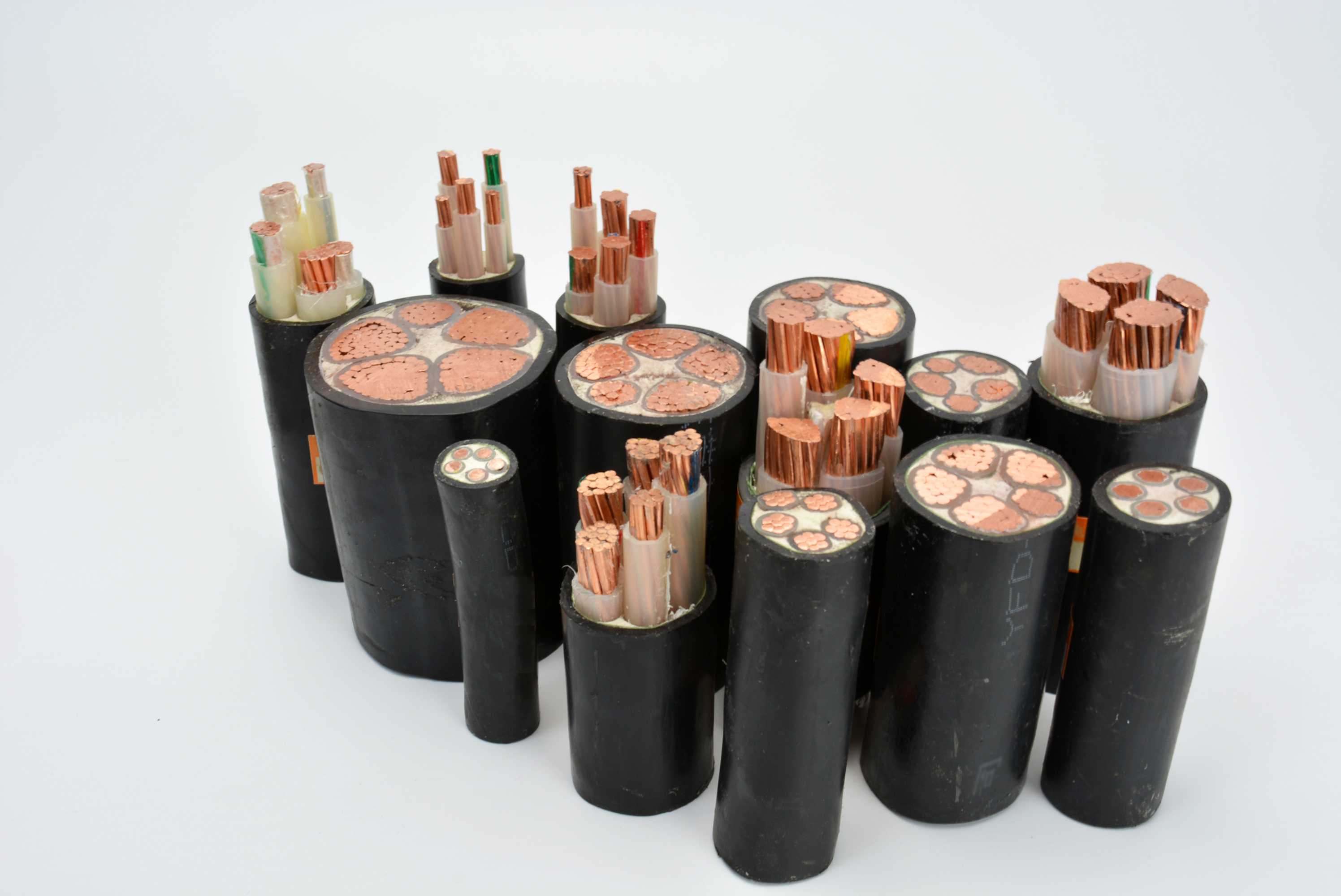

This cable is used to transmit power on the power transmission and distribution line of A.C.50Hz, rated voltage 35kV or lower. In comparison with PVC insulation cable, it boasts not only excellent electric character, mechanical character, heat and aging-resistant character, environmental stress-resistant character and chemical corrosion- resistant character, but simple structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working as well.
2.Working conditions:
1）This maximum working temperature of the conductor is 90 0C;
During having a short (lasting less than 5 seconds) the maximum temperature of the cable conductor shall not be above 250 0C; Environment temperature should be no lower than 00C for laying the cable;
2）Bending radius allowance of the cable:
Single core cable: No steel tape cable 20D; Steel tape cable 15D
Cores cable: No steel tape cable 15D; Steel tape cable 12D.
Notes: D practical external diameter of cable.
3.Type Description & Application Occasion of cable
Type | Description | Application Occasion | |
Cu | Al | ||
YJV | YJLV | XLPE insulation PVC sheath power cable | To be laid indoors, in tunnel, cable furrow or pipe, the cable couldn't bear mechanical force outside |
YJY | YJLY | XLPE insulation PE sheath power cable | |
YJV22 | YJLV22 | XLPE insulation, steel tape armor, PVC sheath power cable | To be laid underground, the cable could bear certain mechanical force, but it couldn't bear great pulling force. |
YJV23 | YJLV23 | XLPE insulation, steel tape armor, PE sheath power cable | |
YJV62 | YJLV62 | XLPE insulation, have no the magnetism steel tape armor, PE sheath power cable | |
YJV32 | YJLV32 | XLPE insulation, thin steel-wire armor, PVC sheath power cable | Be applicable to the well, water inside and fall in the bad soil, the cable cans bear the equal dint outside the machine with pull the dint
. |
YJV72 | YJLV72 | XLPE insulation, have no the magnetism thick steel-wire armor, PVC sheath power cable | |
YJV42 | YJLV42 | XLPE insulation, thick steel-wire armor, PVC sheath power cable | Be applicable to the well, underwater with the bottom of sea, the cable cans bear the bigger pressure with lead to pull the dint. |
Hint Specially | The single-core magnetism material packs the cable is not suitable for to use for the AC power supply back track, the necessity hour eligibility uses the single-core 62 or 72 type pack the cable. Disallow the cent to cross the magnetism piping mutually when single-core cable establish, the in order to prevent results in the descent that cable transport electric current ability. | ||
Test Voltage and biggest Discharge capacity of cable
Rated Voltage (kV) | 3.6/6 | 6/6 6/10 | 8.7/10 8.7/15 | 12/20 | 18/30 | 21/35 | 26/35 |
Test Voltage （kV） | 6.23 | 10.38 | 15.05 | 20.76 | 31.14 | 36.33 | 44.98 |
Discharge capacity （pC） | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
AC voltage test of cable
Rated Voltage kV | 0.6/1 | 1.8/3 | 3.6/6 3.6/10 | 6/6 6/10 | 8.7/10 8.7/15 | 12/20 | 18/30 | 21/35 | 26/35 |
Test VoltagekV | 3.5 | 6.5 | 12.5 | 21 | 30.5 | 42 | 63 | 73.5 | 91 |
min Test Time | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
Structure of power cable
4. Specification of Cable
26/35 kV 1-core XLPE insulation PVC sheath power cable
Nominal Area mm2 | Non armored | Tape-armored | Wire-armored | ||||||
Reference diameter mm | Approximate weight kg/km | Reference diameter mm | Approximate weight kg/km | Reference diameter mm | Approximate weight kg/km | ||||
YJV | YJLV | YJV62 | YJLV62 | YJV72 | YJLV72 | ||||
1*50 | 38.3 | 1839 | 1529 | 42.9 | 2334 | 1992 | 45.2 | 3642 | 3300 |
1*70 | 40.1 | 2122 | 1689 | 44.8 | 2646 | 2174 | 48.2 | 4443 | 3971 |
1*95 | 41.8 | 2447 | 1858 | 46.6 | 2999 | 2366 | 49.9 | 4868 | 4236 |
1*120 | 43.3 | 2759 | 2015 | 48.1 | 3336 | 2544 | 51.5 | 5270 | 4477 |
1*150 | 45.0 | 3128 | 2198 | 49.9 | 3734 | 2750 | 53.3 | 5739 | 4755 |
1*185 | 46.7 | 3543 | 2396 | 51.6 | 4179 | 2972 | 55.0 | 6256 | 5049 |
1*240 | 49.0 | 4177 | 2690 | 54.1 | 4855 | 3300 | 57.5 | 7032 | 5477 |
1*300 | 51.4 | 4855 | 2996 | 56.5 | 5576 | 3642 | 59.9 | 7852 | 5917 |
1*400 | 54.8 | 5960 | 3481 | 60.1 | 6745 | 4180 | 63.4 | 9166 | 6600 |
1*500 | 58.2 | 7092 | 3993 | 63.6 | 7944 | 4724 | 67.0 | 10508 | 7289 |
1*630 | 61.7 | 8479 | 4575 | 67.3 | 9402 | 5362 | 70.6 | 12115 | 8075 |
26/35(40.5) kV 3-core XLPE insulation PVC sheath power cable
Nominal Area mm2 | Non armored | Tape-armored | Wire-armored | ||||||
Reference diameter mm | Approximate weight kg/km | Reference diameter mm | Approximate weight kg/km | Reference diameter mm | Approximate weight kg/km | ||||
YJV | YJLV | YJV22 | YJLV22 | YJV32 | YJLV32 | ||||
3*50 | 81.0 | 6195 | 5265 | 87.4 | 8408 | 7478 | 92.0 | 12174 | 11244 |
3*70 | 84.9 | 7118 | 5817 | 92.7 | 10378 | 9077 | 96.1 | 13427 | 12126 |
3*95 | 88.6 | 8160 | 6393 | 96.4 | 11555 | 9788 | 99.8 | 14738 | 12971 |
3*120 | 91.8 | 9164 | 6933 | 100.0 | 12769 | 10538 | 103.2 | 16031 | 13800 |
3*150 | 95.4 | 10351 | 7562 | 103.8 | 14143 | 11354 | 107.1 | 17542 | 14753 |
3*185 | 99.3 | 11722 | 8282 | 107.5 | 15610 | 12170 | 110.8 | 19140 | 15700 |
3*240 | 104.2 | 13724 | 9262 | 112.8 | 17903 | 13441 | 116.1 | 21600 | 17138 |
3*300 | 109.4 | 15944 | 10367 | 118.0 | 20324 | 14747 | 121.3 | 24230 | 18653 |
3*400 | 116.1 | 19388 | 11952 | 125.1 | 24138 | 16702 | 128.3 | 28250 | 20814 |
